PIC24FV08KM204-E/ML

PIC24FV08KM204-E/ML Overview

Product belongs to the PICR XLP 24F series. Tube is the packaging method for this product 44-VQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 44-QFN (8x8) This product has 37 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, IrDA, LIN, SPI, UART/USART interface Supply Voltage: 2 V ~ 5 V 16-Bit architecture Internal oscillator type

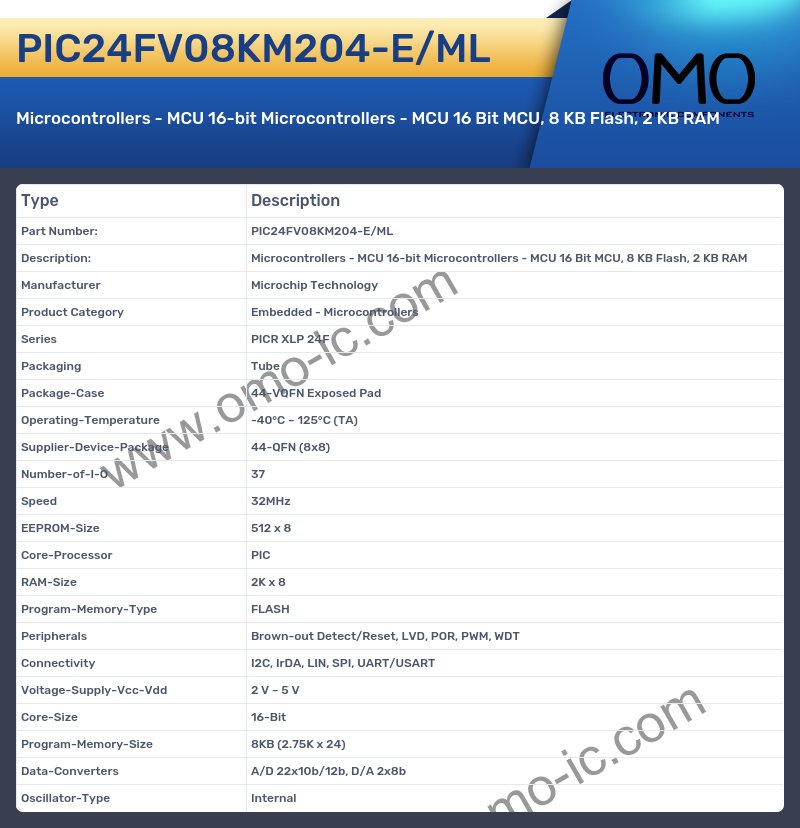

PIC24FV08KM204-E/ML Image

PIC24FV08KM204-E/ML Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 24F
• Packaging Tube
• Package-Case 44-VQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 44-QFN (8x8)
• Number-of-I-O 37
• Speed 32MHz
• EEPROM-Size 512 x 8
• Core-Processor PIC
• RAM-Size 2K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2 V ~ 5 V
• Core-Size 16-Bit
• Program-Memory-Size 8KB (2.75K x 24)
• Data-Converters A/D 22x10b/12b, D/A 2x8b
• Oscillator-Type Internal

PIC24FV08KM204-E/ML FAQ

• A: At what frequency does the Series?

  Q: The product Series is PICR XLP 24F.

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Tube.

• A: Is the cutoff frequency of the product Package-Case?

  Q: Yes, the product's Package-Case is indeed 44-VQFN Exposed Pad

• A: Is the cutoff frequency of the product Operating-Temperature?

  Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 125°C (TA)

• A: At what frequency does the Supplier-Device-Package?

  Q: The product Supplier-Device-Package is 44-QFN (8x8).

• A: What is the Number-of-I-O of the product?

  Q: The Number-of-I-O of the product is 37.

• A: What is the Speed of the product?

  Q: The Speed of the product is 32MHz.

• A: What is the Program-Memory-Type of the product?

  Q: The Program-Memory-Type of the product is FLASH.

• A: Is the cutoff frequency of the product Connectivity?

  Q: Yes, the product's Connectivity is indeed I2C, IrDA, LIN, SPI, UART/USART

• A: At what frequency does the Voltage-Supply-Vcc-Vdd?

  Q: The product Voltage-Supply-Vcc-Vdd is 2 V ~ 5 V.

• A: Is the cutoff frequency of the product Core-Size?

  Q: Yes, the product's Core-Size is indeed 16-Bit

• A: Is the cutoff frequency of the product Oscillator-Type?

  Q: Yes, the product's Oscillator-Type is indeed Internal
