PT6946N

PT6946N Overview

Product belongs to the Excalibur PT6940 series. Type: Non-Isolated PoL Module Tray is the packaging method for this product 27-SIP Module, Vertical Operational temperature range: -40°C ~ 85°C Through Hole mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 2 Our product delivers a 6A, 6A of 50mA for efficient power management. The minimum input voltage is 3.1V. The 5.5V. This product is designed with - voltage isolation for maximum safety and reliability. 2.5V output voltage

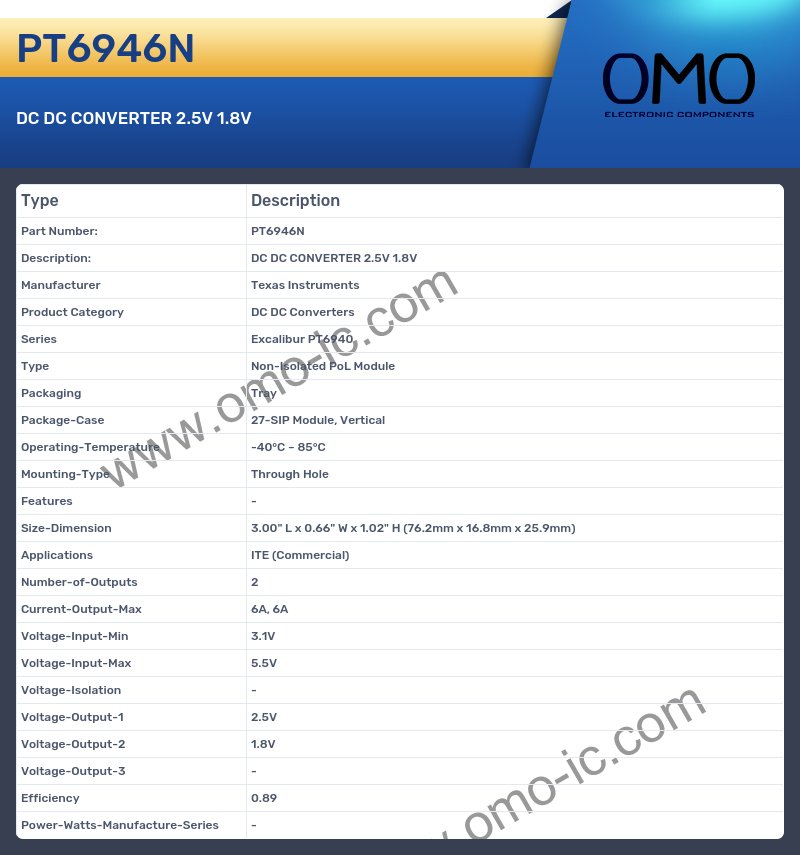

PT6946N Image

PT6946N Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT6940
• Type Non-Isolated PoL Module
• Packaging Tray
• Package-Case 27-SIP Module, Vertical
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Features -
• Size-Dimension 3.00" L x 0.66" W x 1.02" H (76.2mm x 16.8mm x 25.9mm)
• Applications ITE (Commercial)
• Number-of-Outputs 2
• Current-Output-Max 6A, 6A
• Voltage-Input-Min 3.1V
• Voltage-Input-Max 5.5V
• Voltage-Isolation -
• Voltage-Output-1 2.5V
• Voltage-Output-2 1.8V
• Voltage-Output-3 -
• Efficiency 0.89
• Power-Watts-Manufacture-Series -
