REF02CPZ

REF02CPZ Overview

Product belongs to the REF02 series. Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: 8-PDIP Tolerance of ±1% 7 V ~ 40 V voltage input This product has a 1.6mA of 200μA. Series is the reference type. Minimum fixed output voltage is 5V . 65ppm/°C is 30 parts per million per degree Celsius. 15μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 5 V Input Voltage Range: 40 V Initial accuracy: 1 % Maximum shunt current of 8 mA

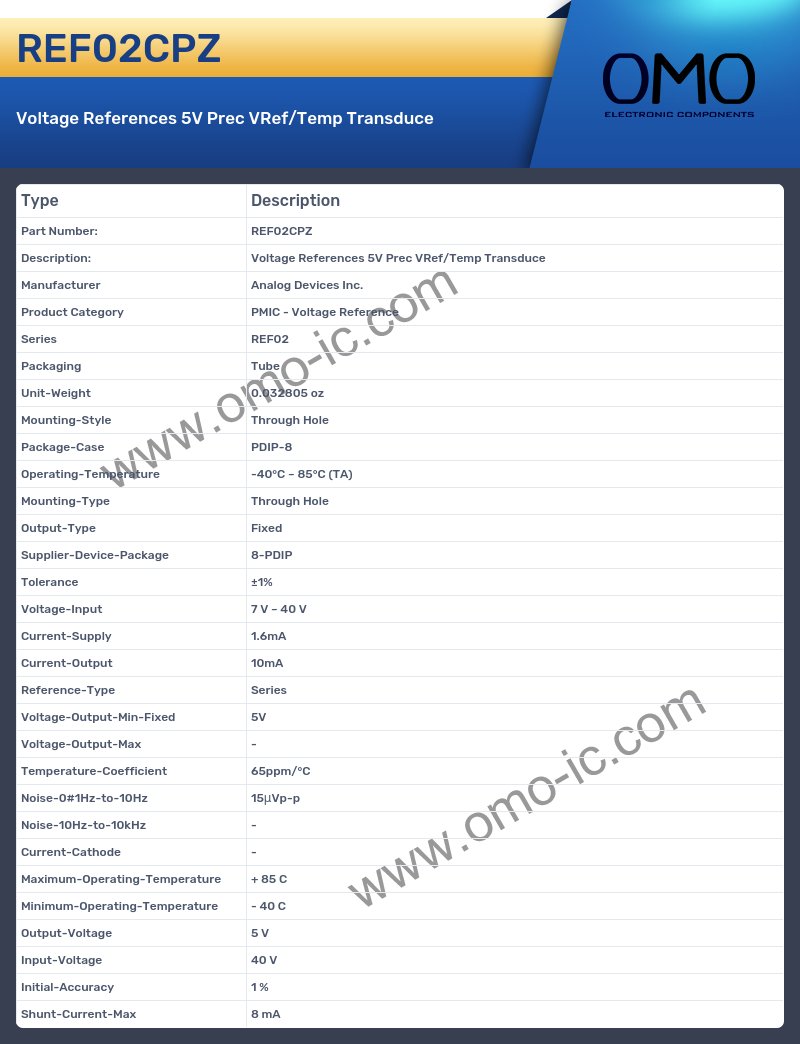

REF02CPZ Image

REF02CPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series REF02
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package 8-PDIP
• Tolerance ±1%
• Voltage-Input 7 V ~ 40 V
• Current-Supply 1.6mA
• Current-Output 10mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 5V
• Voltage-Output-Max -
• Temperature-Coefficient 65ppm/°C
• Noise-0#1Hz-to-10Hz 15μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage 40 V
• Initial-Accuracy 1 %
• Shunt-Current-Max 8 mA
