SG3524N

SG3524N Overview

Product belongs to the SG3524 series. Tube is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Down, Step-Up/Step-Down. Supplier device package: 16-DIP Number-of-Outputs: 2 Topology: Buck, Flyback, Push-Pull feedback Supply Voltage: 8 V ~ 40 V This product features 'Frequency-Switching' at 100kHz ~ 300kHz for optimal performance. The Control-Features include Enable function. The Positive. Output-Phases: 1 Maximum duty cycle of 45 % The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 8 V to 40 V supply voltage for reliable performance. Output voltage: 4.6 V to 5.4 V Output current: 100 mA Switching frequency is 722 kHz This product has a 100 ns of 16 ns. This product has a 200 ns of 16 ns.

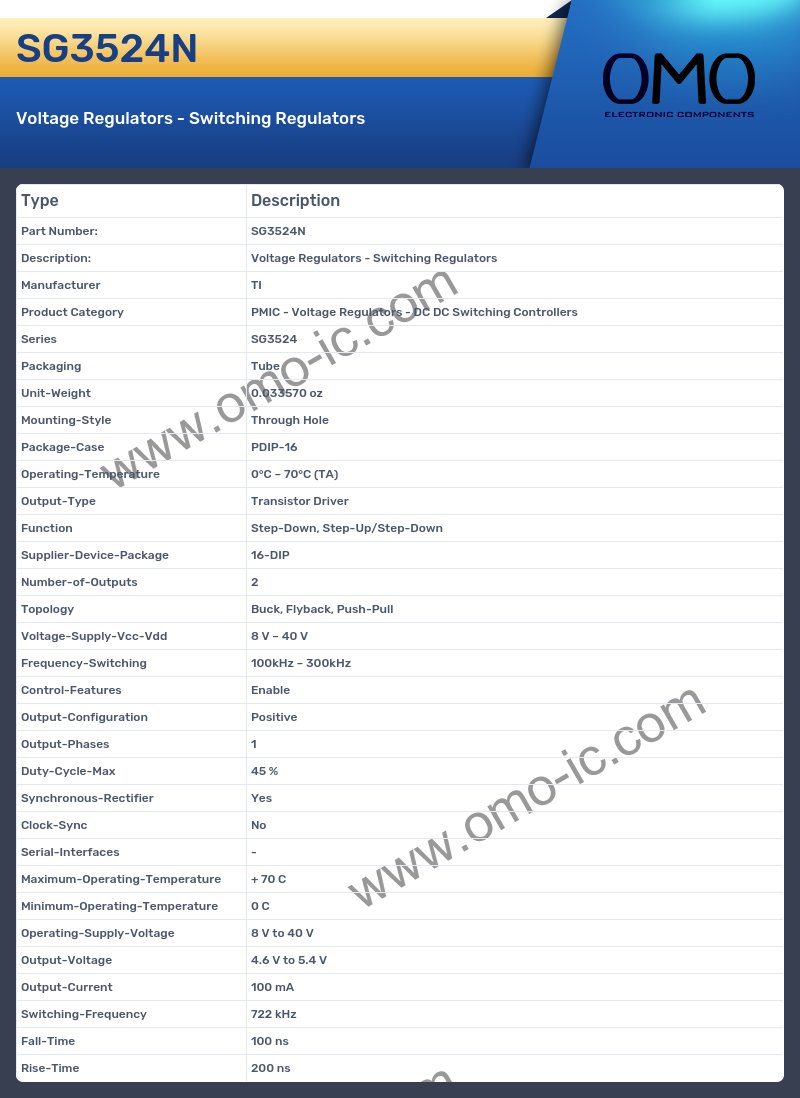

SG3524N Image

SG3524N Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series SG3524
• Packaging Tube
• Unit-Weight 0.033570 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-DIP
• Number-of-Outputs 2
• Topology Buck, Flyback, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 40 V
• Frequency-Switching 100kHz ~ 300kHz
• Control-Features Enable
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 45 %
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 8 V to 40 V
• Output-Voltage 4.6 V to 5.4 V
• Output-Current 100 mA
• Switching-Frequency 722 kHz
• Fall-Time 100 ns
• Rise-Time 200 ns
