SG3524NSR

SG3524NSR Overview

Product belongs to the SG3524 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SOP-16 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 16-SO Number-of-Outputs: 2 Topology: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8 V ~ 40 V This product features 'Frequency-Switching' at 450kHz for optimal performance. The Control-Features include Current Limit, Frequency Control function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 45 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 8 V to 40 V supply voltage for reliable performance. Output voltage: 4.6 V to 5.4 V Output current: 100 mA Switching frequency is 722 kHz This product has a 100 ns of 16 ns. This product has a 200 ns of 16 ns.

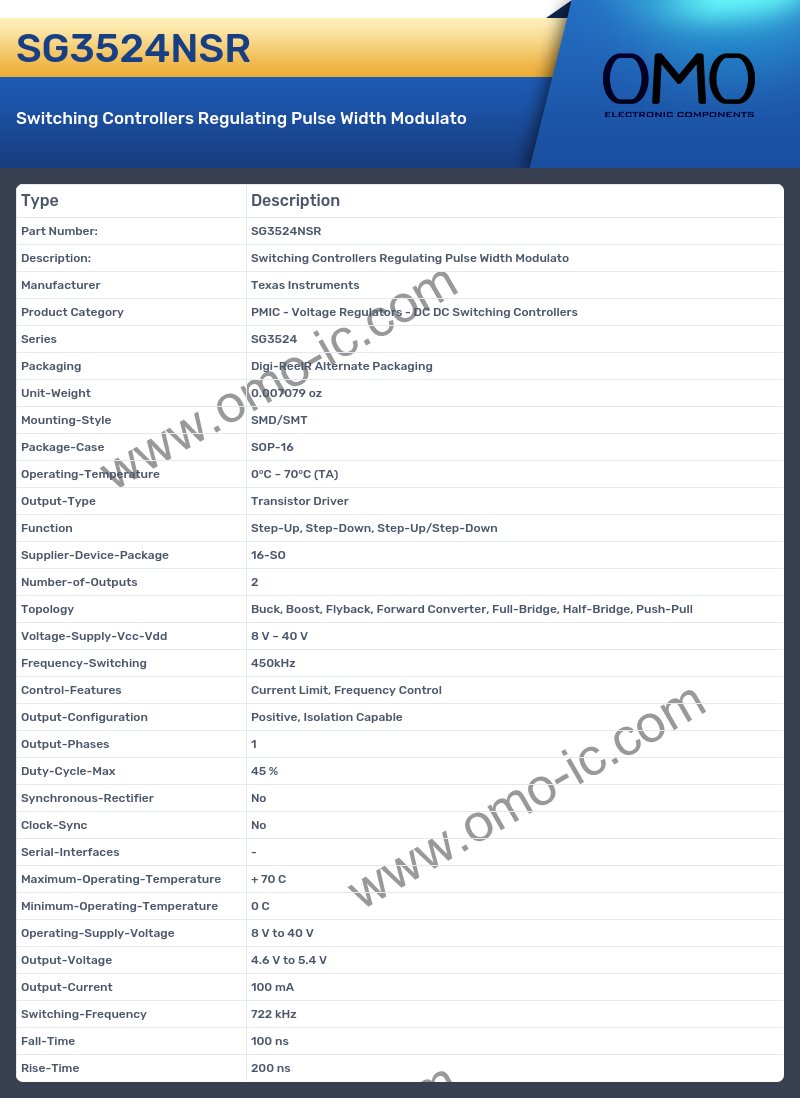

SG3524NSR Image

SG3524NSR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series SG3524
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-16
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-SO
• Number-of-Outputs 2
• Topology Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 40 V
• Frequency-Switching 450kHz
• Control-Features Current Limit, Frequency Control
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 45 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 8 V to 40 V
• Output-Voltage 4.6 V to 5.4 V
• Output-Current 100 mA
• Switching-Frequency 722 kHz
• Fall-Time 100 ns
• Rise-Time 200 ns
