SI8055AA-B-IU

SI8055AA-B-IU Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.002931 oz SMD/SMT Mounting-Style QSOP-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 5 Voltage Supply Range: 3.15 V ~ 5.5 V Supplier device package: 16-QSOP This product's Unidirectional This product is designed with 1000Vrms voltage isolation for maximum safety and reliability. Power-off control: Shutdown This product is designed with No isolated power for maximum safety and reliability. The product has 2000/5/1 0:00:00 inputs from Side 1 to Side 2. Minimum 35kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 65ns, 65ns The minimum pulse width distortion is 30ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. 4.4 mA is 92 nA. Isolation voltage of 1.5 kVrms Maximum supply voltage of 5.5 V Minimum supply voltage is 3.15 V 40 ns is 23 microseconds.

SI8055AA-B-IU Image

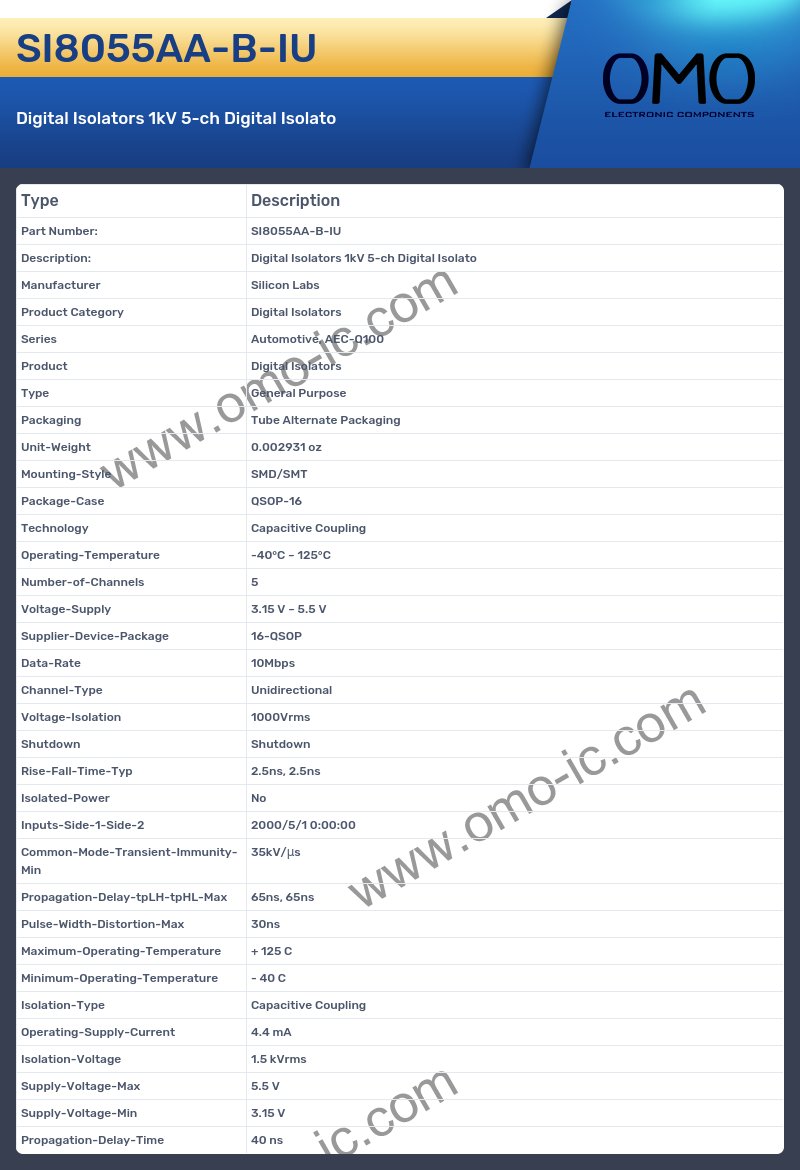

SI8055AA-B-IU Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002931 oz
• Mounting-Style SMD/SMT
• Package-Case QSOP-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 5
• Voltage-Supply 3.15 V ~ 5.5 V
• Supplier-Device-Package 16-QSOP
• Data-Rate 10Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 1000Vrms
• Shutdown Shutdown
• Rise-Fall-Time-Typ 2.5ns, 2.5ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/5/1 0:00:00
• Common-Mode-Transient-Immunity-Min 35kV/μs
• Propagation-Delay-tpLH-tpHL-Max 65ns, 65ns
• Pulse-Width-Distortion-Max 30ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 4.4 mA
• Isolation-Voltage 1.5 kVrms
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3.15 V
• Propagation-Delay-Time 40 ns
