SN65LVDS101DGKR

SN65LVDS101DGKR Overview

Product belongs to the SN65LVDS101 series. Type: Buffer, ReDriver Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000670 oz SMD/SMT Mounting-Style VSSOP-8 The CML LVDS LVPECL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVPECL Versatile - applications for maximum usability Number of channels: 1 Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 8-VSSOP Input type: CML, LVDS, LVPECL The LVPECL. This product has a 50mA of 200μA. Data rate maximum is 2Gbps . The Capacitance-Input is set to 0.6pF; Power-off control: 377 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 90 mA is 92 nA. The SN65LVDS101EVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Drivers: 1 Driver The product has 1 Receiver receivers. 0.9 ns is 23 microseconds.

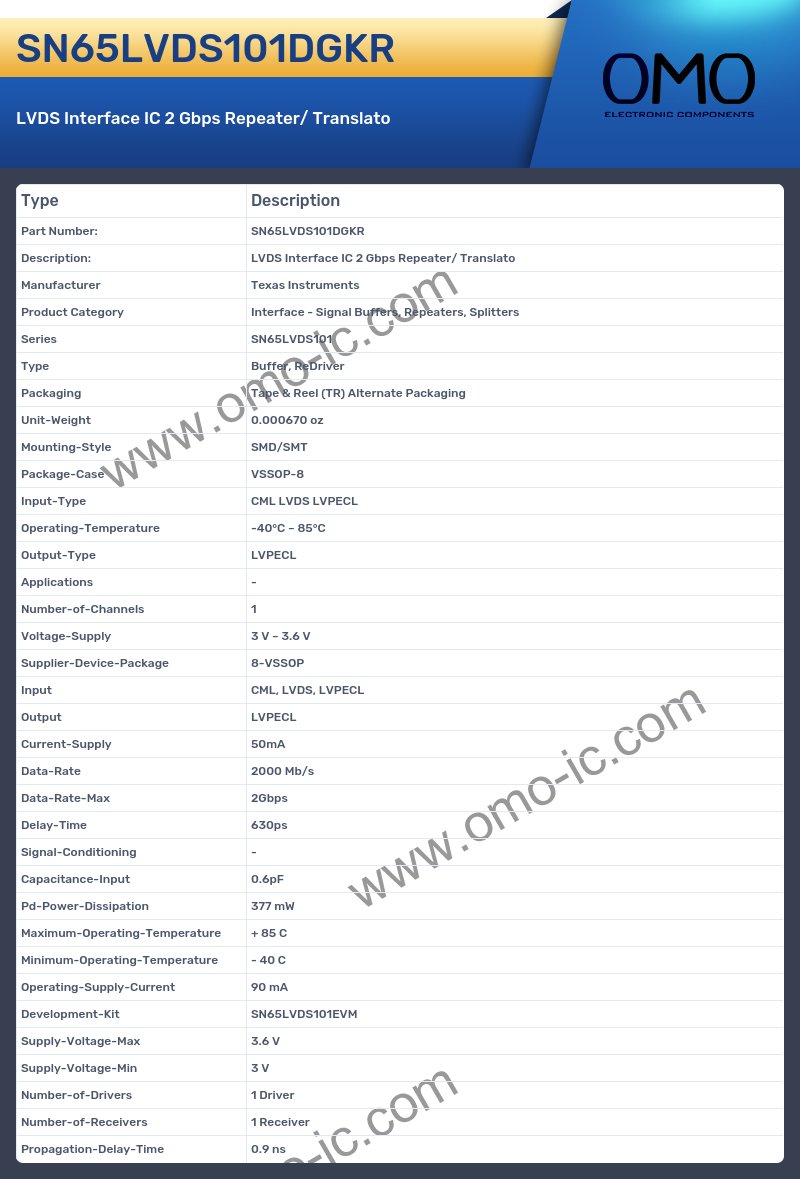

SN65LVDS101DGKR Image

SN65LVDS101DGKR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Signal Buffers, Repeaters, Splitters
• Series SN65LVDS101
• Type Buffer, ReDriver
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.000670 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-8
• Input-Type CML LVDS LVPECL
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVPECL
• Applications -
• Number-of-Channels 1
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 8-VSSOP
• Input CML, LVDS, LVPECL
• Output LVPECL
• Current-Supply 50mA
• Data-Rate 2000 Mb/s
• Data-Rate-Max 2Gbps
• Delay-Time 630ps
• Signal-Conditioning -
• Capacitance-Input 0.6pF
• Pd-Power-Dissipation 377 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 90 mA
• Development-Kit SN65LVDS101EVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 1 Driver
• Number-of-Receivers 1 Receiver
• Propagation-Delay-Time 0.9 ns
