| Mfr. #: | SN74AHCT125D |
|---|---|
| 제조사: | Texas Instruments |
| 설명: | Buffers & Line Drivers Tri-State Quad Bus |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | SN74AHCT125D 데이터 시트 |
Product belongs to the 74AHCT series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 14-SOIC 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V AHCT logic type 7.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 8 mA 8 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

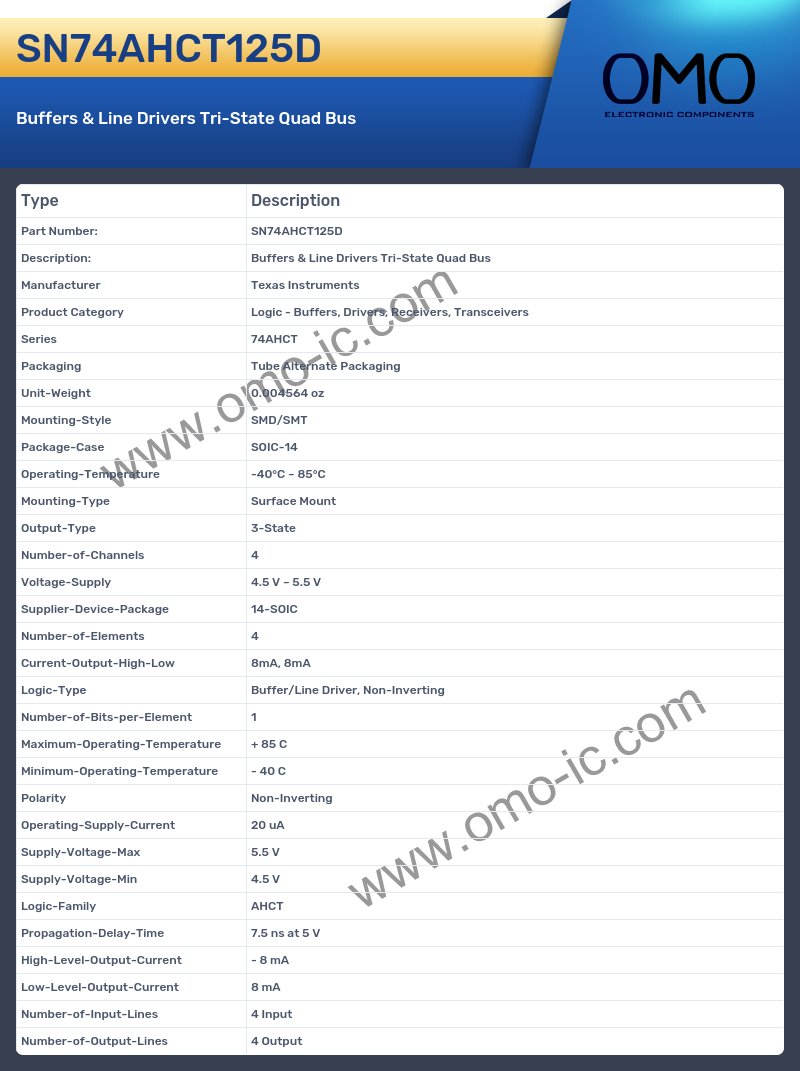

SN74AHCT125D Specifications
