| Mfr. #: | SN74ALS244CN |
|---|---|
| 제조사: | Texas Instruments |
| 설명: | Buffers & Line Drivers Tri-State Octal |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | SN74ALS244CN 데이터 시트 |
Product belongs to the 74ALS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-PDIP 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 24 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ALS logic type 10 ns at 4.5 V to 5.5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

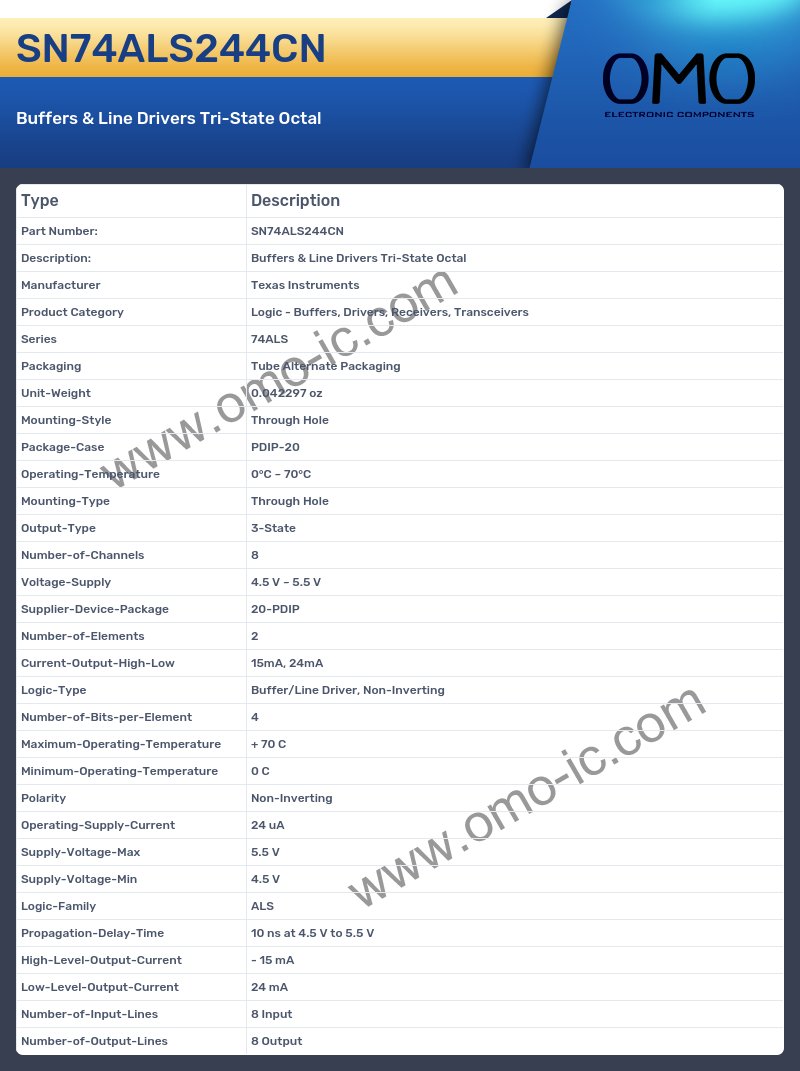

SN74ALS244CN Specifications
