| Mfr. #: | SN74LS126AN |
|---|---|
| 제조사: | Texas Instruments |
| 설명: | Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | SN74LS126AN 데이터 시트 |
Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-PDIP 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 62 uA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 18 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 2.6 mA 24 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

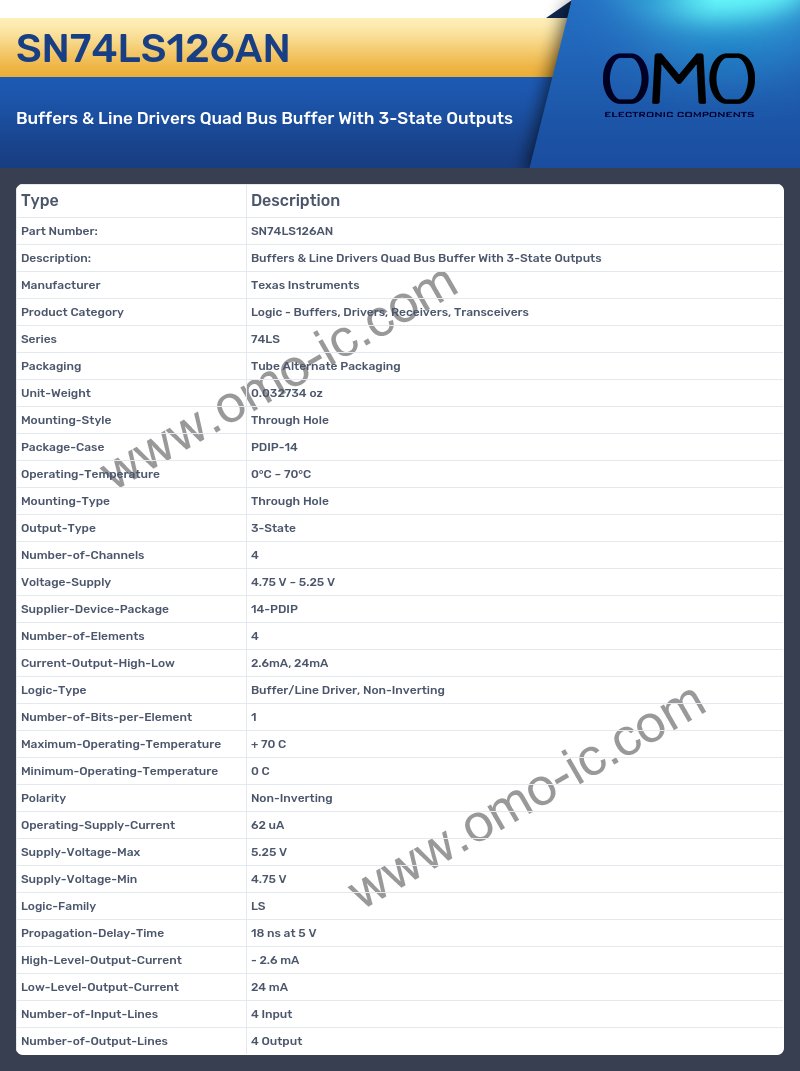

SN74LS126AN Specifications
