SN74LS283D

SN74LS283D Overview

Product belongs to the 74LS series. Tube is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Binary Full Adder. Number of channels: 1 Channel Supplier device package: 16-SOIC 4 bits Binary Full Adder with Fast Carry logic type The 4.75 V ~ 5.25 V. Power-off control: 95 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 24 ns is 23 microseconds. High-Level-Output-Current of - 0.4 mA 8 mA low-level output current

SN74LS283D Image

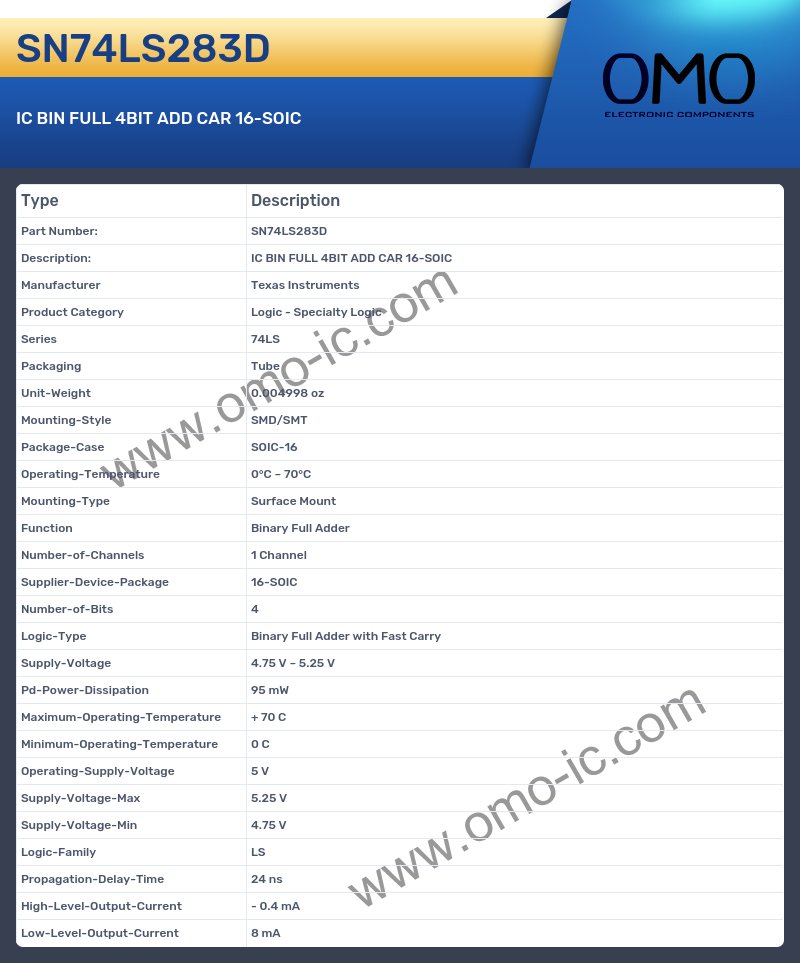

SN74LS283D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Specialty Logic
• Series 74LS
• Packaging Tube
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Binary Full Adder
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-SOIC
• Number-of-Bits 4
• Logic-Type Binary Full Adder with Fast Carry
• Supply-Voltage 4.75 V ~ 5.25 V
• Pd-Power-Dissipation 95 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 24 ns
• High-Level-Output-Current - 0.4 mA
• Low-Level-Output-Current 8 mA
