SN74LV1T04DBVR

SN74LV1T04DBVR Overview

Product belongs to the 74LV series. Type: Level Translators Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 The TTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS Number of channels: 1 Channel Voltage Supply Range: 1.6 V ~ 5.5 V Supplier device package: SOT-23-5 1 is 8. 1μA maximum quiescent current. Inverter logic type 0.58 V ~ 0.8 V is a Logic-Level-Low; 0.94 V ~ 2.1 V is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V

SN74LV1T04DBVR Image

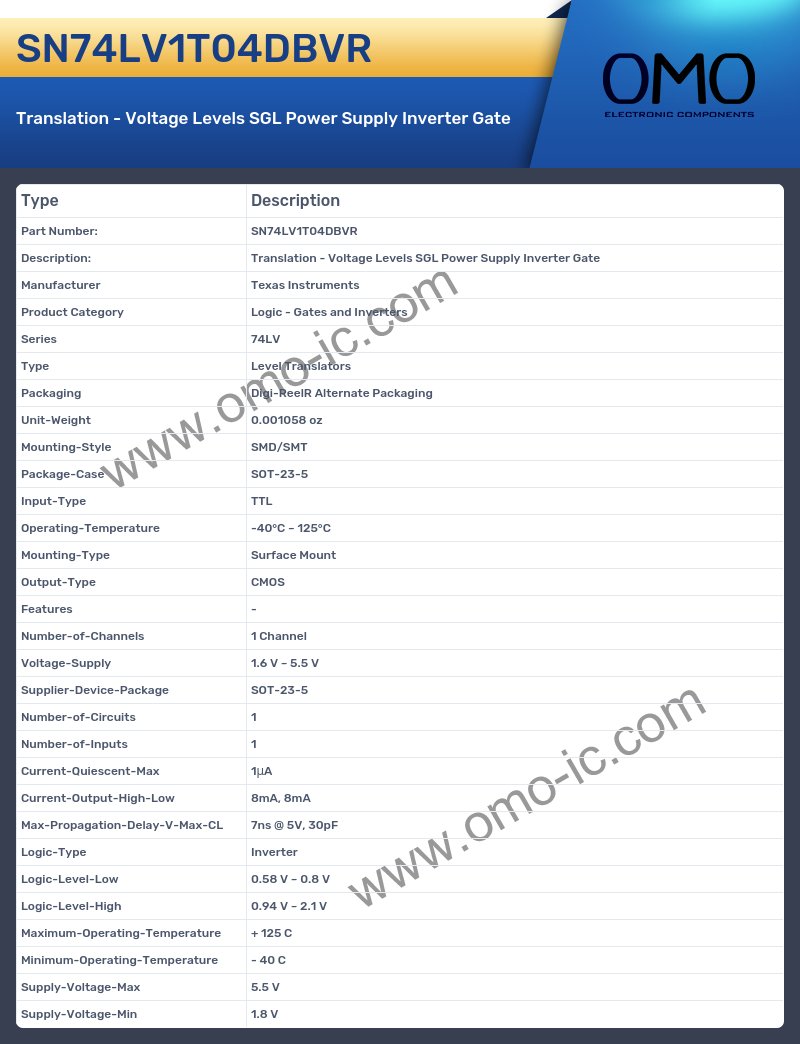

SN74LV1T04DBVR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LV
• Type Level Translators
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Input-Type TTL
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS
• Features -
• Number-of-Channels 1 Channel
• Voltage-Supply 1.6 V ~ 5.5 V
• Supplier-Device-Package SOT-23-5
• Number-of-Circuits 1
• Number-of-Inputs 1
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 8mA, 8mA
• Max-Propagation-Delay-V-Max-CL 7ns @ 5V, 30pF
• Logic-Type Inverter
• Logic-Level-Low 0.58 V ~ 0.8 V
• Logic-Level-High 0.94 V ~ 2.1 V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
