SN74LV21APW

SN74LV21APW Overview

Product belongs to the 74LV series. This product is categorized as Single-Function Gate Tube Alternate Packaging is the packaging method for this product Weight of 0.002018 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications TSSOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 14-TSSOP 2 is 8. 2 Gate is the number of gates included in this product. 20μA maximum quiescent current. AND Gate logic type 0.5V is a Logic-Level-Low; 1.5V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV-A logic type 8.5 ns is 23 microseconds. High-Level-Output-Current of - 12 mA 12 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 1 Output AND logic function

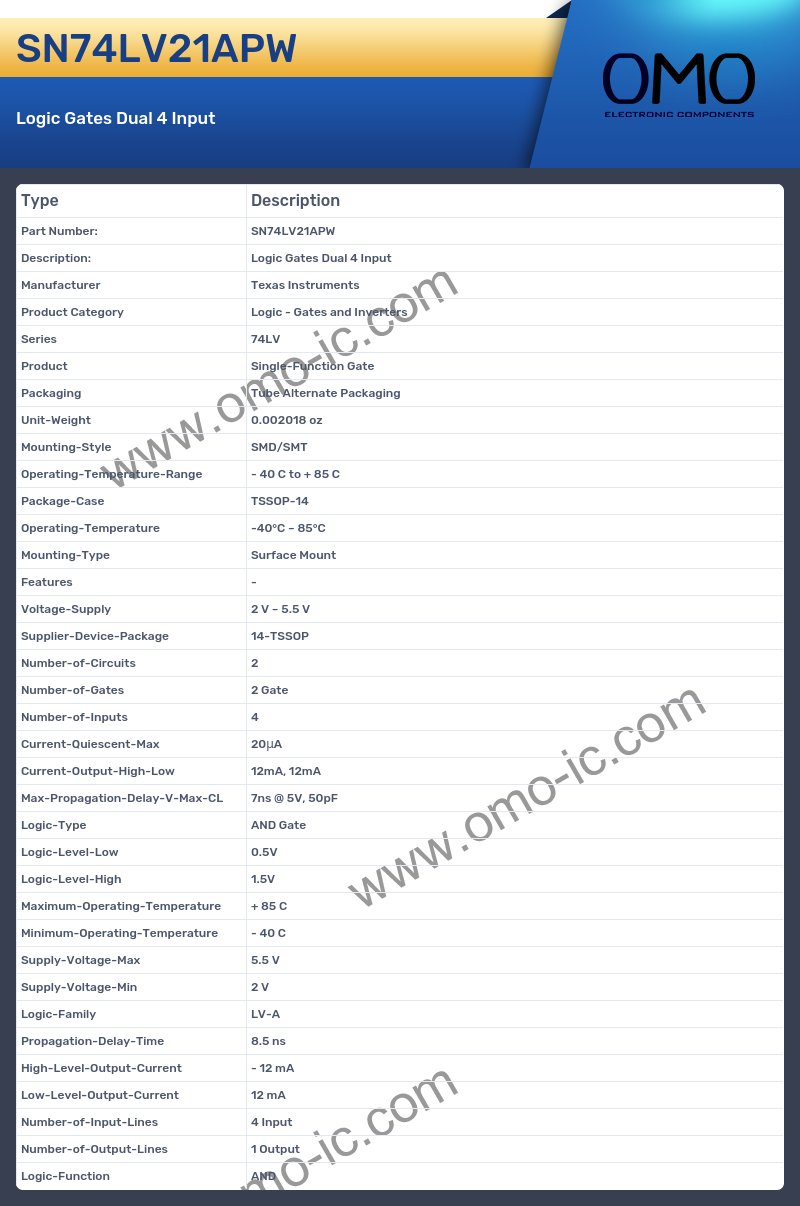

SN74LV21APW Image

SN74LV21APW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LV
• Product Single-Function Gate
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002018 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case TSSOP-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 5.5 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 2
• Number-of-Gates 2 Gate
• Number-of-Inputs 4
• Current-Quiescent-Max 20μA
• Current-Output-High-Low 12mA, 12mA
• Max-Propagation-Delay-V-Max-CL 7ns @ 5V, 50pF
• Logic-Type AND Gate
• Logic-Level-Low 0.5V
• Logic-Level-High 1.5V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Logic-Family LV-A
• Propagation-Delay-Time 8.5 ns
• High-Level-Output-Current - 12 mA
• Low-Level-Output-Current 12 mA
• Number-of-Input-Lines 4 Input
• Number-of-Output-Lines 1 Output
• Logic-Function AND
