SN74LV245ADW

SN74LV245ADW Overview

Product belongs to the 74LV series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is Tri-State Octal Bus. Number of channels: 8 Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 20-SOIC 8 is 8. 1 element Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 20 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV-A logic type 15.9 ns is 23 microseconds. LVTTL is the output level. This product has an LVTTL for easy integration with other devices. High-Level-Output-Current of - 16 mA 16 mA low-level output current

SN74LV245ADW Image

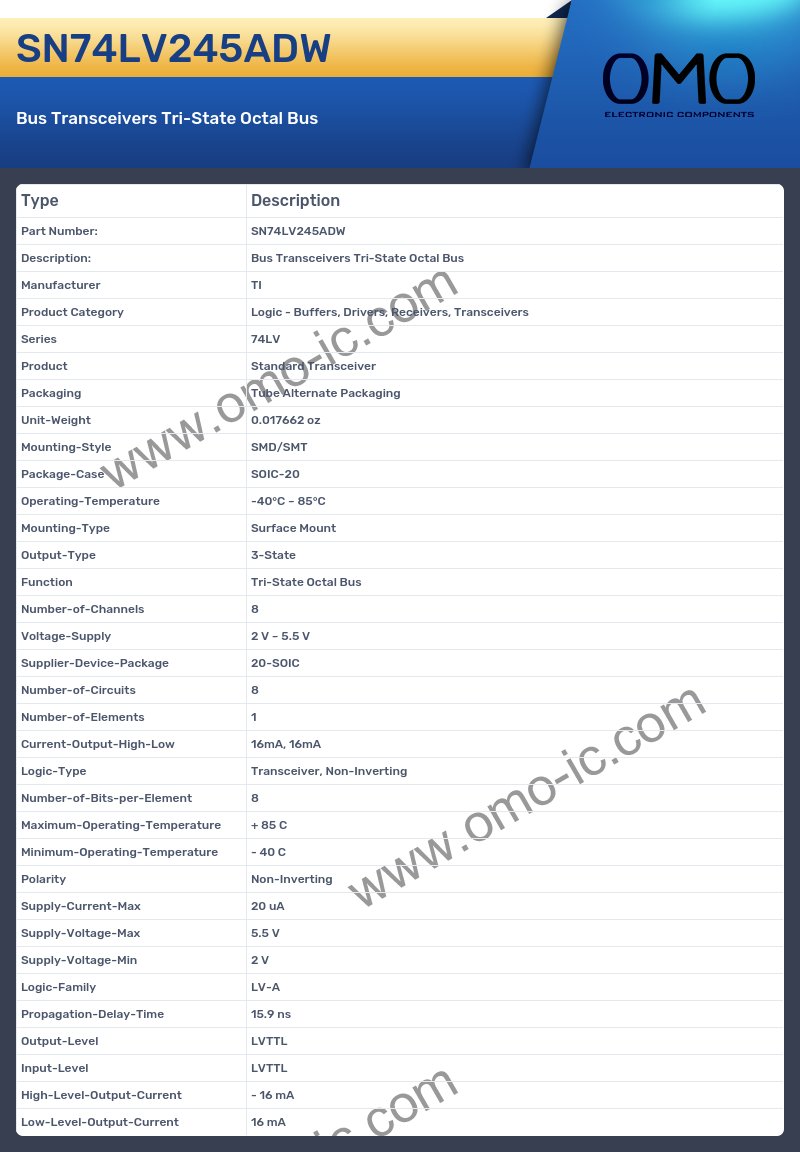

SN74LV245ADW Specifications

• Manufacturer TI
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LV
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Tri-State Octal Bus
• Number-of-Channels 8
• Voltage-Supply 2 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 16mA, 16mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 20 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Logic-Family LV-A
• Propagation-Delay-Time 15.9 ns
• Output-Level LVTTL
• Input-Level LVTTL
• High-Level-Output-Current - 16 mA
• Low-Level-Output-Current 16 mA
