SN74LVC543ADBR

SN74LVC543ADBR Overview

Product belongs to the 74LVC series. This product is categorized as CMOS Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006081 oz SMD/SMT Mounting-Style SSOP-24 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is This octal registered transceiver is designed for 1.65-V to 3.6-V VCC operation. Number of channels: 8 Voltage Supply Range: 1.65 V ~ 3.6 V Supplier device package: 24-SSOP 8 is 8. 1 element Registered Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 10 uA Maximum supply voltage of 3.6 V Minimum supply voltage is 1.65 V 74LVC logic type 8 ns is 23 microseconds. LVTTL is the output level. This product has an LVTTL for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

SN74LVC543ADBR Image

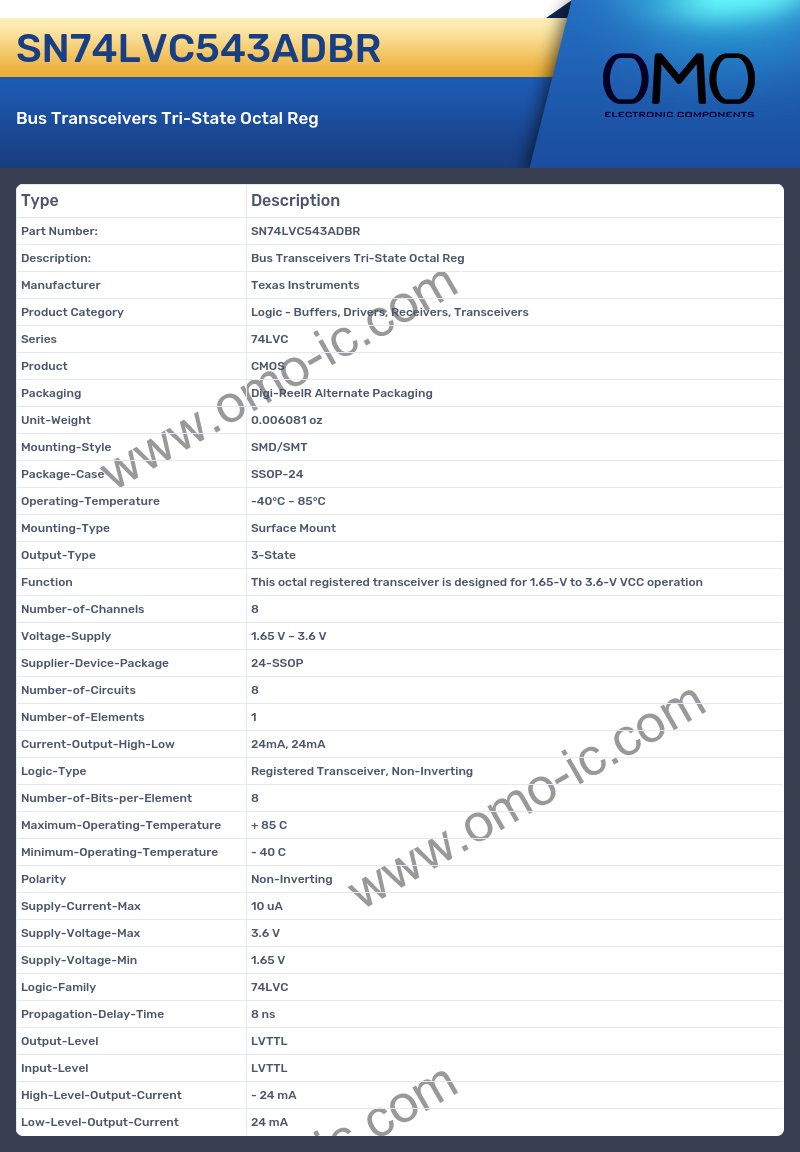

SN74LVC543ADBR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LVC
• Product CMOS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006081 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-24
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function This octal registered transceiver is designed for 1.65-V to 3.6-V VCC operation
• Number-of-Channels 8
• Voltage-Supply 1.65 V ~ 3.6 V
• Supplier-Device-Package 24-SSOP
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Registered Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 10 uA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.65 V
• Logic-Family 74LVC
• Propagation-Delay-Time 8 ns
• Output-Level LVTTL
• Input-Level LVTTL
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
