SSM2306CPZ-R2

SSM2306CPZ-R2 Overview

Product belongs to the SSM2306 series. This product is categorized as Audio Amplifiers Type: Class D Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-16 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: 2-Channel (Stereo) Number of channels: 2 Channel Voltage Supply Range: 2.5 V ~ 5 V Supplier device package: 16-LFCSP-VQ (3x3) Maximum Output Power of 2.4W x 2 @ 4 Ohm for 1 channel Class-D is the class of this product. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 6.5 mA is 92 nA. Maximum supply voltage of 5 V Minimum supply voltage is 2.5 V This product has a 0.4 % for clear and precise audio.

SSM2306CPZ-R2 Image

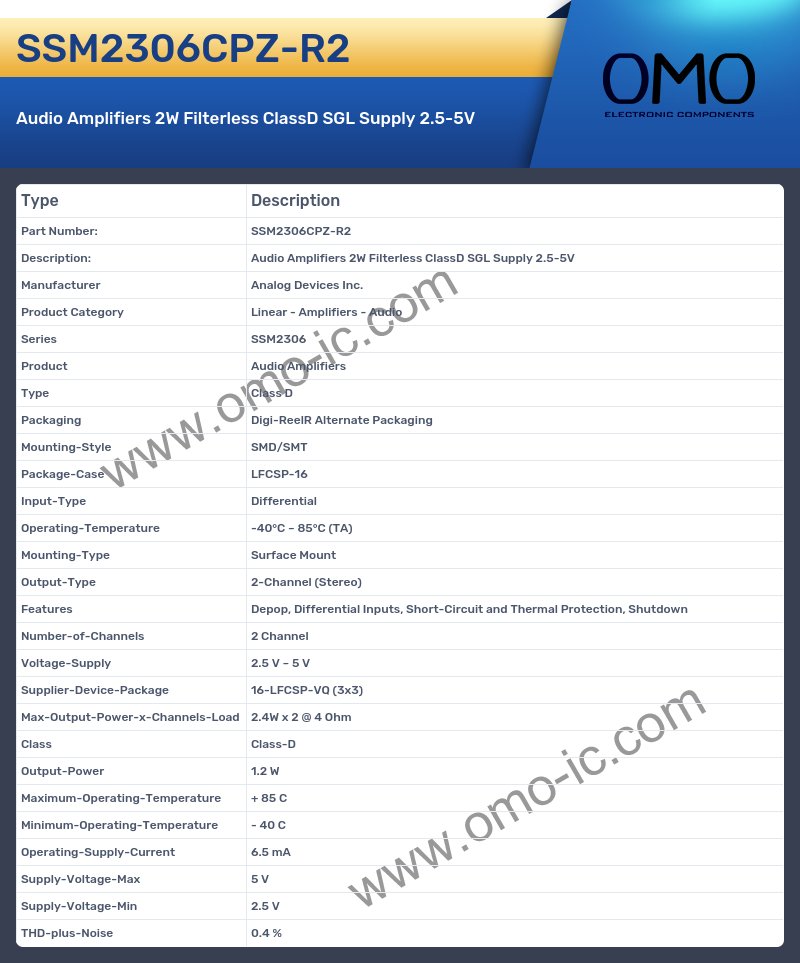

SSM2306CPZ-R2 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Audio
• Series SSM2306
• Product Audio Amplifiers
• Type Class D
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-16
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type 2-Channel (Stereo)
• Features Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
• Number-of-Channels 2 Channel
• Voltage-Supply 2.5 V ~ 5 V
• Supplier-Device-Package 16-LFCSP-VQ (3x3)
• Max-Output-Power-x-Channels-Load 2.4W x 2 @ 4 Ohm
• Class Class-D
• Output-Power 1.2 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 6.5 mA
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 2.5 V
• THD-plus-Noise 0.4 %
