SSM2804CBZ-RL

SSM2804CBZ-RL Overview

Product belongs to the SSM2804 series. This product is categorized as Audio Subsystems Type: Class D Digi-ReelR Alternate Packaging is the packaging method for this product 30-WFBGA, WLCSP The Single for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: 2-Channel (Stereo) with Stereo Headphones Voltage Supply Range: 2.5 V ~ 3.6 V Supplier device package: 30-WLCSP (2.96x2.46) Maximum Output Power of 3.6W x 2 @ 4 Ohm; 40mW x 2 @ 16 Ohm for 1 channel Class-D is the class of this product. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 3.6 V Minimum supply voltage is 2.5 V This product has a 0.01 % for clear and precise audio. 32 Ohm audio load impedance Dual supply type

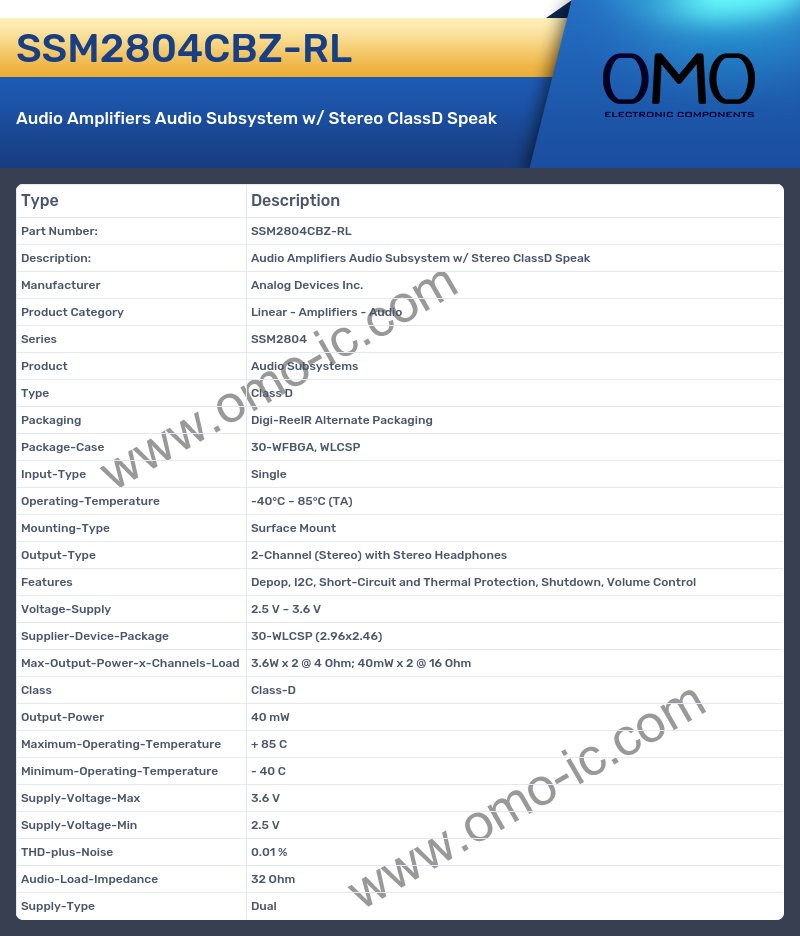

SSM2804CBZ-RL Image

SSM2804CBZ-RL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Audio
• Series SSM2804
• Product Audio Subsystems
• Type Class D
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 30-WFBGA, WLCSP
• Input-Type Single
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type 2-Channel (Stereo) with Stereo Headphones
• Features Depop, I2C, Short-Circuit and Thermal Protection, Shutdown, Volume Control
• Voltage-Supply 2.5 V ~ 3.6 V
• Supplier-Device-Package 30-WLCSP (2.96x2.46)
• Max-Output-Power-x-Channels-Load 3.6W x 2 @ 4 Ohm; 40mW x 2 @ 16 Ohm
• Class Class-D
• Output-Power 40 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.5 V
• THD-plus-Noise 0.01 %
• Audio-Load-Impedance 32 Ohm
• Supply-Type Dual
