| Mfr. #: | STD7ANM60N |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | IGBT Transistors MOSFET N-CH 600V 5A 0.84Ohm MDmesh II |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | STD7ANM60N 데이터 시트 |
Product belongs to the MDmesh II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: DPAK Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 363pF @ 50V value of 300pF @ 25V. This product's Standard. 5A (Tc) continuous drain-ID current at 25°C; This product has an 900 mOhm @ 2.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 45 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 12 ns of 16 ns. This product has a 10 ns of 16 ns. This product's 25 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 3 V Vgs-th gate-source threshold voltage for efficient power management. The 900 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 26 ns This product has a 7 ns. Qg-Gate-Charge is 14 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

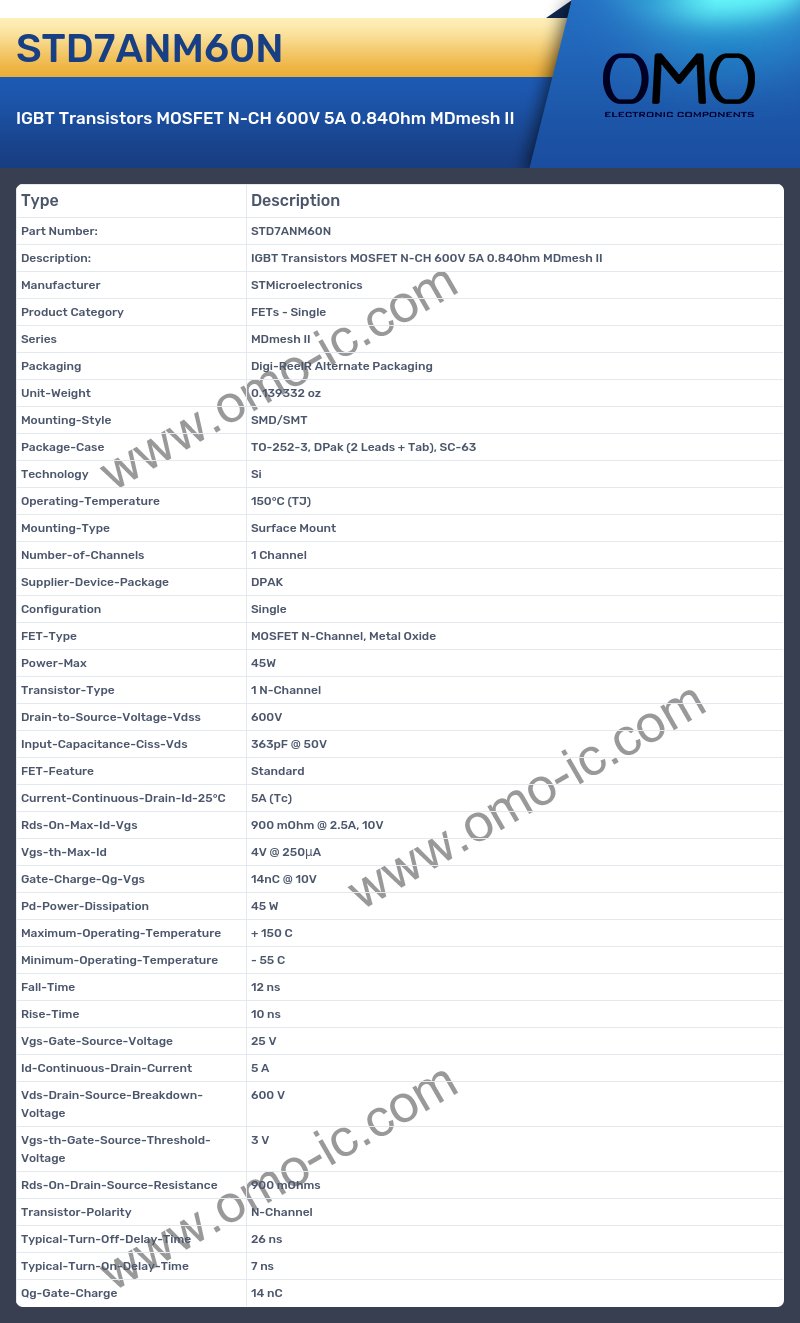

STD7ANM60N Specifications
A: What is the Series of the product?
Q: The Series of the product is MDmesh II.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.139332 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-252-3, DPak (2 Leads + Tab), SC-63
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 150°C (TJ).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed DPAK
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET N-Channel, Metal Oxide.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 N-Channel.
A: At what frequency does the Drain-to-Source-Voltage-Vdss?
Q: The product Drain-to-Source-Voltage-Vdss is 600V.
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 363pF @ 50V.
A: What is the FET-Feature of the product?
Q: The FET-Feature of the product is Standard.
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 5A (Tc)
A: At what frequency does the Rds-On-Max-Id-Vgs?
Q: The product Rds-On-Max-Id-Vgs is 900 mOhm @ 2.5A, 10V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 45 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 12 ns
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 10 ns
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 25 V
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 5 A.
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 600 V.
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 3 V.
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 900 mOhms.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed N-Channel
A: Is the cutoff frequency of the product Typical-Turn-Off-Delay-Time?
Q: Yes, the product's Typical-Turn-Off-Delay-Time is indeed 26 ns
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 7 ns
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 14 nC.
