STF7N80K5

STF7N80K5 Overview

Product belongs to the MDmesh K5 series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Transistor type: 1 N-Channel Power-off control: 25 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 22.2 ns of 16 ns. This product has a 8.3 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 6 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 800 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 1.2 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 23.7 ns This product has a 11.3 ns. Qg-Gate-Charge is 13.4 nC.

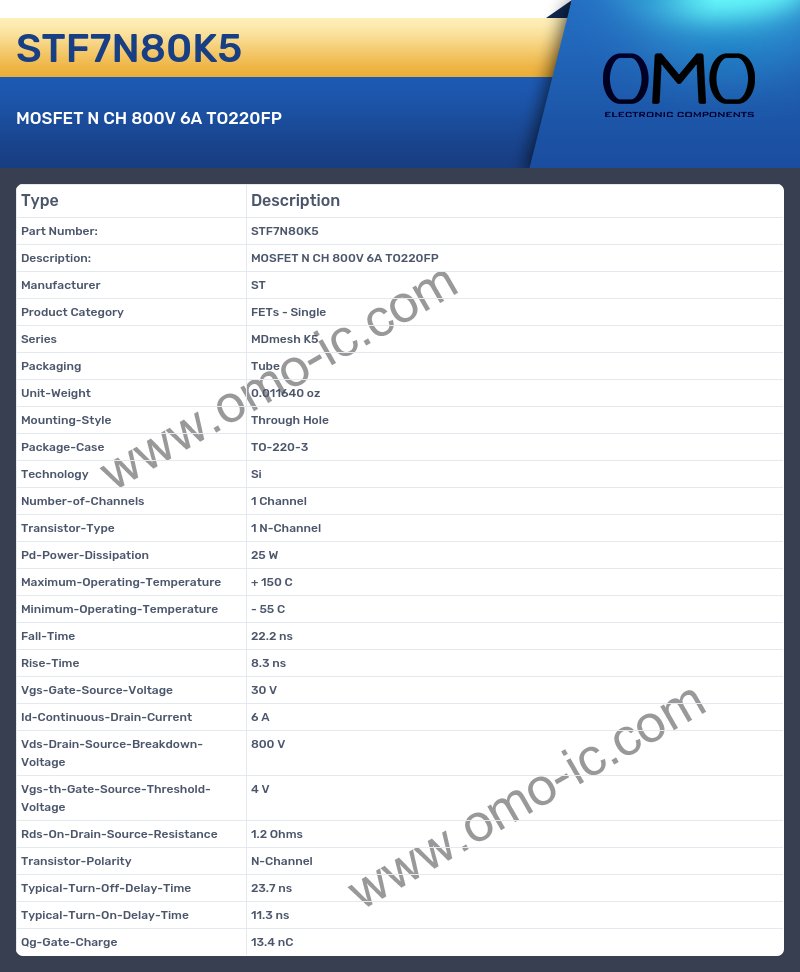

STF7N80K5 Image

STF7N80K5 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series MDmesh K5
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 25 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 22.2 ns
• Rise-Time 8.3 ns
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 6 A
• Vds-Drain-Source-Breakdown-Voltage 800 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 1.2 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 23.7 ns
• Typical-Turn-On-Delay-Time 11.3 ns
• Qg-Gate-Charge 13.4 nC
