| Mfr. #: | STGB10NB37LZ |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | IGBT Transistors 10 A 410V INTERNALLY CLAMPED IGBT |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | STGB10NB37LZ 데이터 시트 |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.079014 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Maximum current collector Ic is 20A . Maximum collector-emitter breakdown voltage of 440V The Current-Collector-Pulsed-Icm is rated at 40A. The Vce-on-Max-Vge-Ic is rated at 1.8V @ 4.5V, 10A. 1.3μs/8μs Td-on-off at 25°C; Operating temperature: 328V, 10A, 1 kOhm, 5V Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 1.8 V Saturation voltage between collector and emitter is 1.2 V 20 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 16 V Maximal 20 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

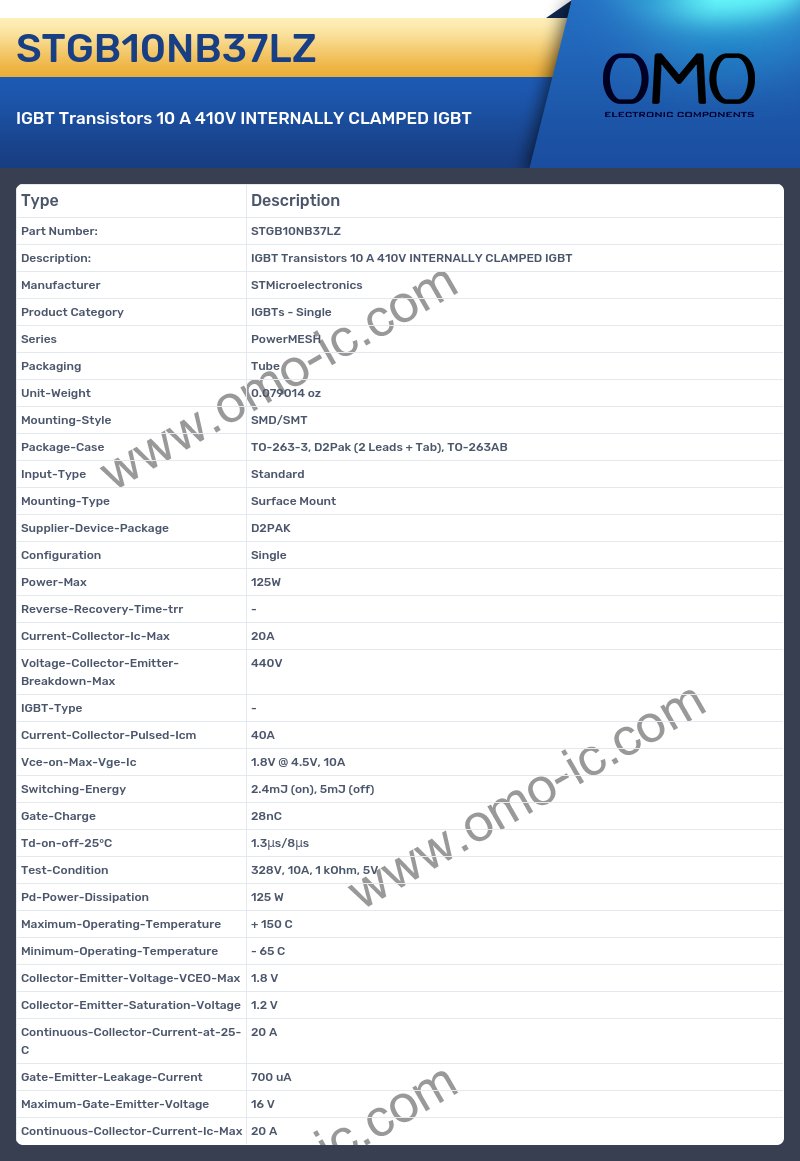

STGB10NB37LZ Specifications
A: What is the Series of the product?
Q: The Series of the product is PowerMESH.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.079014 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-263-3, D2Pak (2 Leads + Tab), TO-263AB.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed D2PAK
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 20A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 440V
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 40A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 1.8V @ 4.5V, 10A.
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 1.3μs/8μs.
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 328V, 10A, 1 kOhm, 5V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 125 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 65 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 1.8 V.
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 1.2 V.
A: At what frequency does the Continuous-Collector-Current-at-25-C?
Q: The product Continuous-Collector-Current-at-25-C is 20 A.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is 16 V.
A: What is the Continuous-Collector-Current-Ic-Max of the product?
Q: The Continuous-Collector-Current-Ic-Max of the product is 20 A.
