| Mfr. #: | STGW40NC60KD |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | IGBT 600V 70A 250W TO247 |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | STGW40NC60KD 데이터 시트 |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Long Leads Configuration Single Maximum current collector Ic is 70A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 220A. The Vce-on-Max-Vge-Ic is rated at 2.7V @ 15V, 30A. 46ns/164ns Td-on-off at 25°C; Operating temperature: 480V, 30A, 10 Ohm, 15V Power-off control: 250 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 70 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

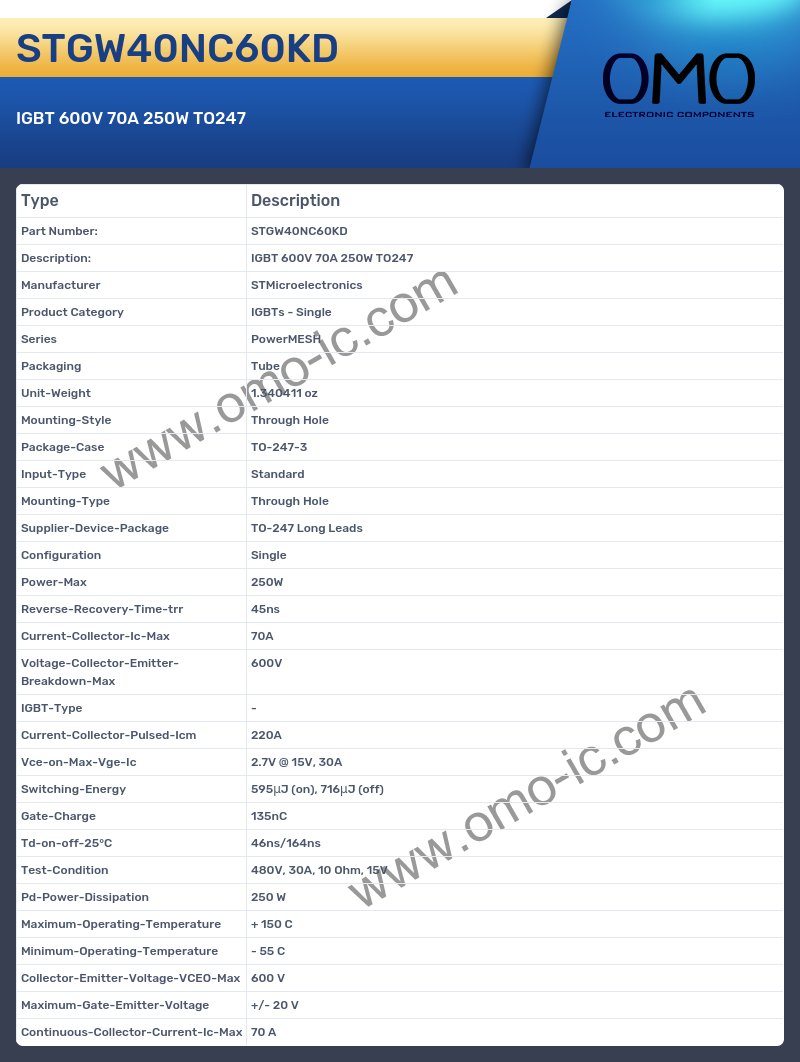

STGW40NC60KD Specifications
