| Mfr. #: | STGWT28IH125DF |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | IGBT Transistors 1250V 25A trench gte field-stop IGBT |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | STGWT28IH125DF 데이터 시트 |
Product belongs to the 900-1300V IGBTs series. Tube is the packaging method for this product Weight of 0.245577 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3P Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 1250V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 25A. -/128ns Td-on-off at 25°C; Operating temperature: 600V, 25A, 10 Ohm, 15V Power-off control: 375 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 1.25 kV Saturation voltage between collector and emitter is 2.65 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 30 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

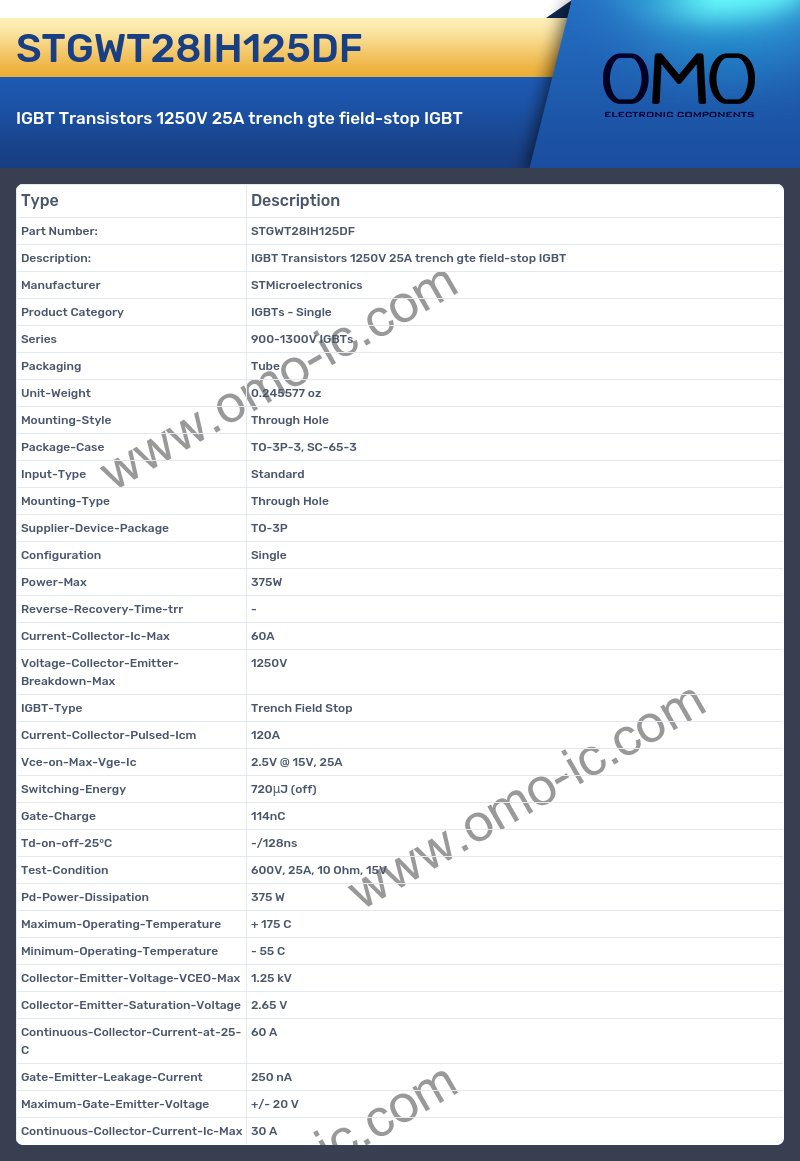

STGWT28IH125DF Specifications
