STIEC45-28ACS Overview

Product belongs to the STIEC, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Wide - 65 C to + 150 C operating temperature range for diverse applications The Height of the product is 2.45 mm. 7.15 mm length of the product The 6.25 mm is at most 7.6 mm. DO-214AB, SMC Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SMC (DO-214AB) 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 28V. The Voltage-Breakdown-Min is 31.1V. No Power-Line-Protection - Capacitance-Frequency Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Breakdown-Voltage: 31.1 V Clamping-Voltage: 49 V 500 A Peak Surge Current 28 V working voltage Polarity: Bidirectional 500 A of IPP, Peak Pulse, and Current

STIEC45-28ACS Image

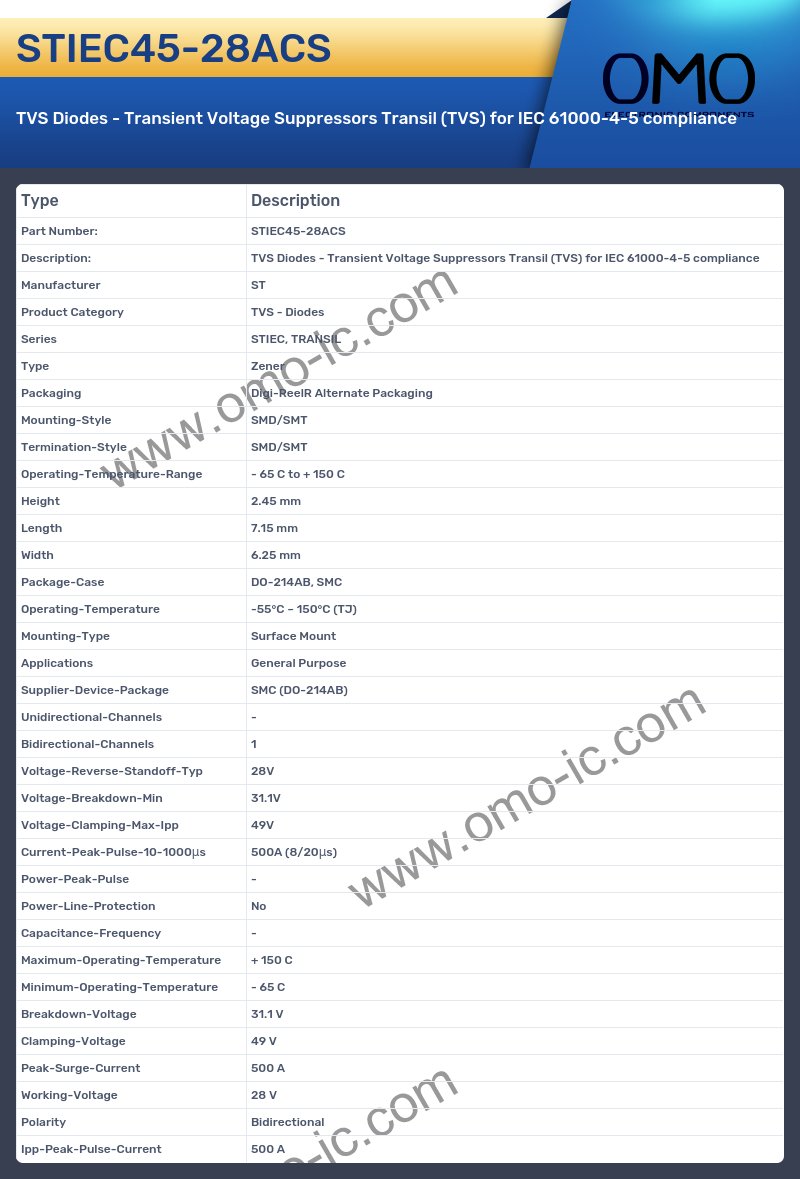

STIEC45-28ACS Specifications

• Manufacturer ST
• Product Category TVS - Diodes
• Series STIEC, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Operating-Temperature-Range - 65 C to + 150 C
• Height 2.45 mm
• Length 7.15 mm
• Width 6.25 mm
• Package-Case DO-214AB, SMC
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SMC (DO-214AB)
• Unidirectional-Channels -
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 28V
• Voltage-Breakdown-Min 31.1V
• Voltage-Clamping-Max-Ipp 49V
• Current-Peak-Pulse-10-1000μs 500A (8/20μs)
• Power-Peak-Pulse -
• Power-Line-Protection No
• Capacitance-Frequency -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 31.1 V
• Clamping-Voltage 49 V
• Peak-Surge-Current 500 A
• Working-Voltage 28 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 500 A
