STK850

STK850 Overview

Product belongs to the STripFET series. Cut Tape (CT) is the packaging method for this product Product Obsolete N-Channel FET Type MOSFET (Metal Oxide) is the technology used. Drain to Source Voltage (Vdss) is 30V Current - Continuous Drain (Id) at 25°C is given as 30A (Tc). This product's 4.5V, 10V is 1.8V, 4.5V. This product's 2.5V @ 250A for optimal performance. The maximum 32.5nC @ 4.5V gate charge of this product ensures efficient switching performance. Vgs (Max): ±16V This product has a maximum 3150pF @ 25V input capacitance at Vds for improved circuit performance. The maximum power dissipation is 5.2W (Tc). Rds On (Max) @ Id, Vgs is 2.9 mOhm @ 15A, 10V. Operating Temperature of -55°C ~ 150°C (TJ) This product has a Surface Mount. The supplier device package for this product is PolarPak. Package type is PolarPak

STK850 Image

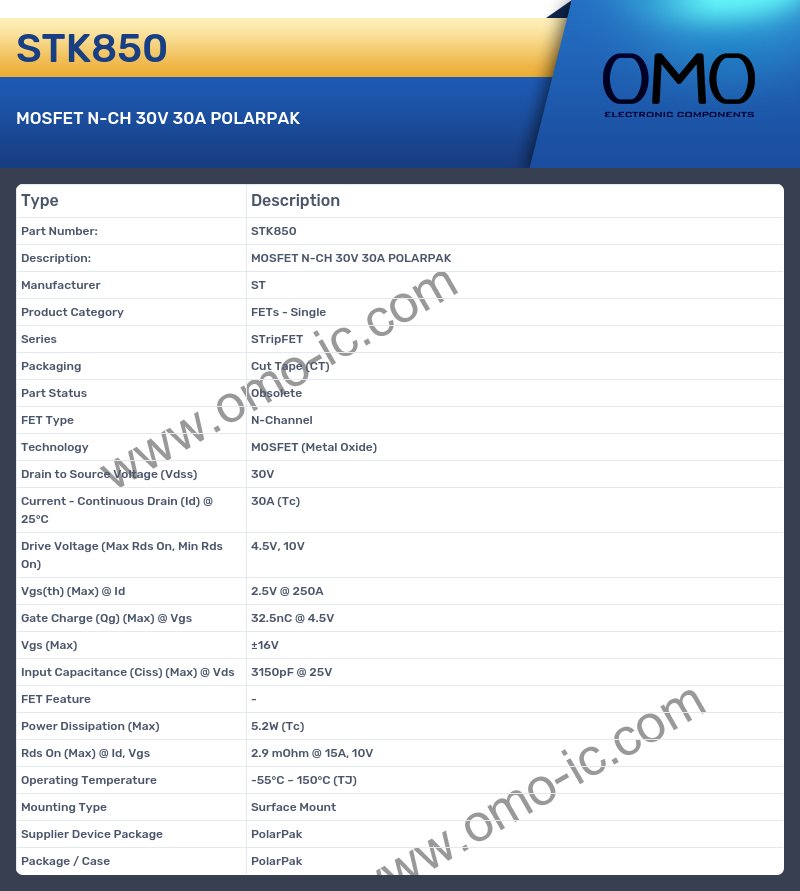

STK850 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series STripFET
• Packaging Cut Tape (CT)
• Part Status Obsolete
• FET Type N-Channel
• Technology MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss) 30V
• Current - Continuous Drain (Id) @ 25°C 30A (Tc)
• Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
• Vgs(th) (Max) @ Id 2.5V @ 250A
• Gate Charge (Qg) (Max) @ Vgs 32.5nC @ 4.5V
• Vgs (Max) ±16V
• Input Capacitance (Ciss) (Max) @ Vds 3150pF @ 25V
• FET Feature -
• Power Dissipation (Max) 5.2W (Tc)
• Rds On (Max) @ Id, Vgs 2.9 mOhm @ 15A, 10V
• Operating Temperature -55°C ~ 150°C (TJ)
• Mounting Type Surface Mount
• Supplier Device Package PolarPak
• Package / Case PolarPak
