| Mfr. #: | STL105NS3LLH7 |
|---|---|
| 제조사: | STMicroelectronics |
| 설명: | MOSFET N-CH 30V 27A PWRFLAT56 |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | STL105NS3LLH7 데이터 시트 |
Product belongs to the N-channel STripFET series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 62.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 12.5 ns of 16 ns. This product has a 10.4 ns of 16 ns. This product's +/- 20 V. The ID of continuous drain current is 27 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1.2 V Vgs-th gate-source threshold voltage for efficient power management. The 3.9 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 31.8 ns This product has a 26.4 ns. Qg-Gate-Charge is 13.7 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

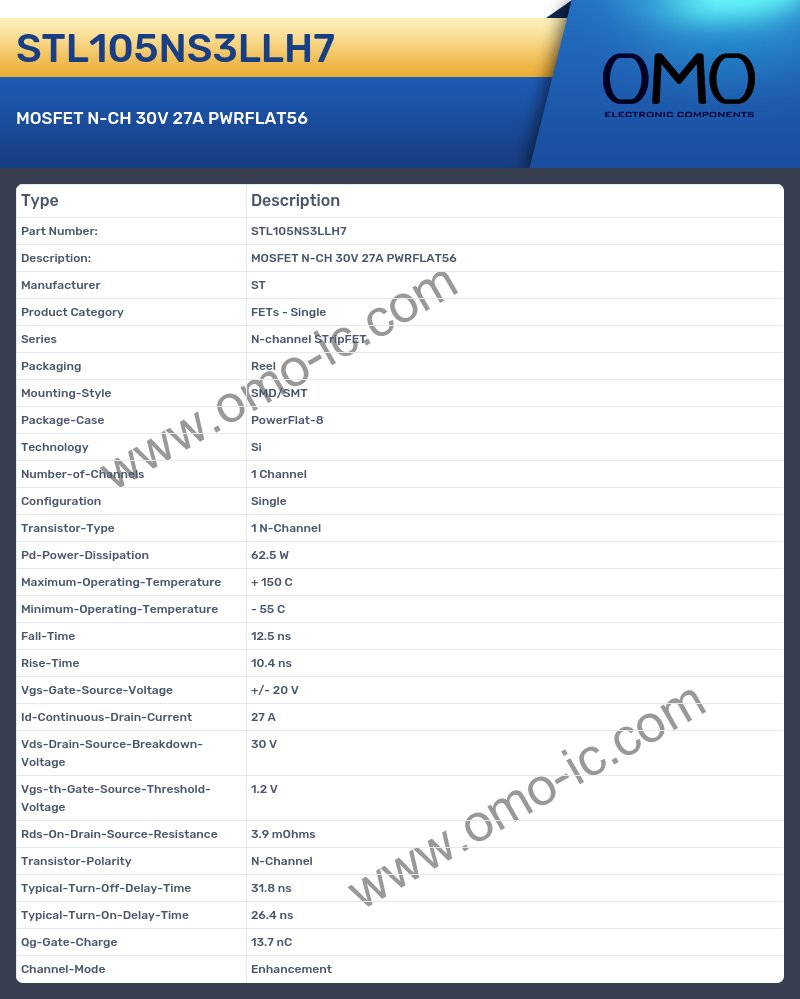

STL105NS3LLH7 Specifications
A: What is the Series of the product?
Q: The Series of the product is N-channel STripFET.
A: At what frequency does the Packaging?
Q: The product Packaging is Reel.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed PowerFlat-8
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 N-Channel.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 62.5 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 12.5 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 10.4 ns.
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed +/- 20 V
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 27 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 30 V
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 1.2 V.
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 3.9 mOhms
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 31.8 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 26.4 ns.
A: What is the Qg-Gate-Charge of the product?
Q: The Qg-Gate-Charge of the product is 13.7 nC.
A: At what frequency does the Channel-Mode?
Q: The product Channel-Mode is Enhancement.
