STM6315SDW13F

STM6315SDW13F Overview

Product belongs to the STM6315 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-143-4 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: SOT-143-4 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 112 ms Minimum. This product's 2.93V. Power-off control: 320 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 1.5 uA to 2 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 7 V Minimum supply voltage is - 0.3 V This product includes No Watchdog This product's 1 V to 5.5 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 210 ms is 200 ms. The 2.98 V is 2.35 V. 2.87 V is set to 2.29 V.

STM6315SDW13F Image

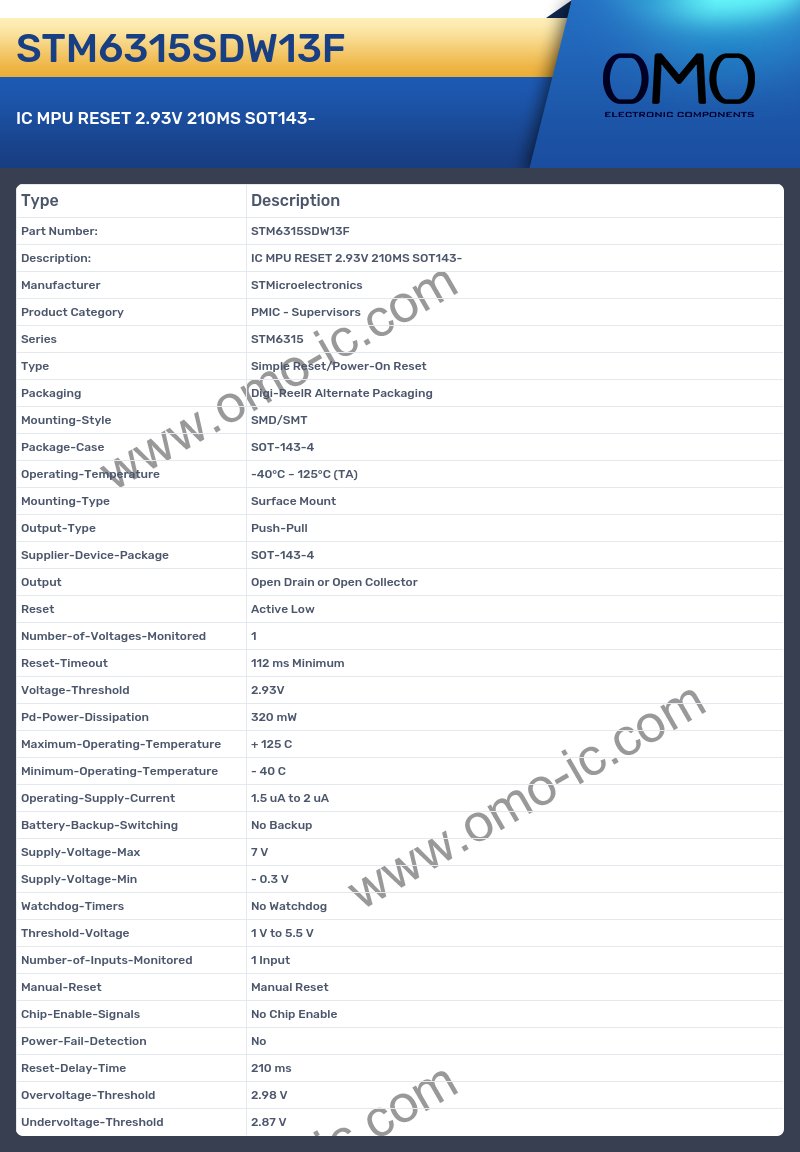

STM6315SDW13F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM6315
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-143-4
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package SOT-143-4
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 112 ms Minimum
• Voltage-Threshold 2.93V
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.5 uA to 2 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 7 V
• Supply-Voltage-Min - 0.3 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 1 V to 5.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 210 ms
• Overvoltage-Threshold 2.98 V
• Undervoltage-Threshold 2.87 V
