STM8L101F2U6ATR

STM8L101F2U6ATR Overview

Product belongs to the STM8L EnergyLite series. Tape & Reel (TR) is the packaging method for this product Weight of 0.004339 oz SMD/SMT Mounting-Style QFN-20 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 20-UFQFPN (3x3) This product has 18 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 1.65 V ~ 3.6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.65 V to 3.6 V supply voltage for reliable performance. I2C SPI USART interface type Processor Core: STM8 This product is powered by the STM8L Processor-Series, providing high performance and efficiency. The 8 bit. Maximum clock frequency of 16 MHz This product has 18 I/O connections. This product has a 1.5 kB data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters. This product features a high-precision No ADC, ensuring accurate data conversion. This product utilizes RAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

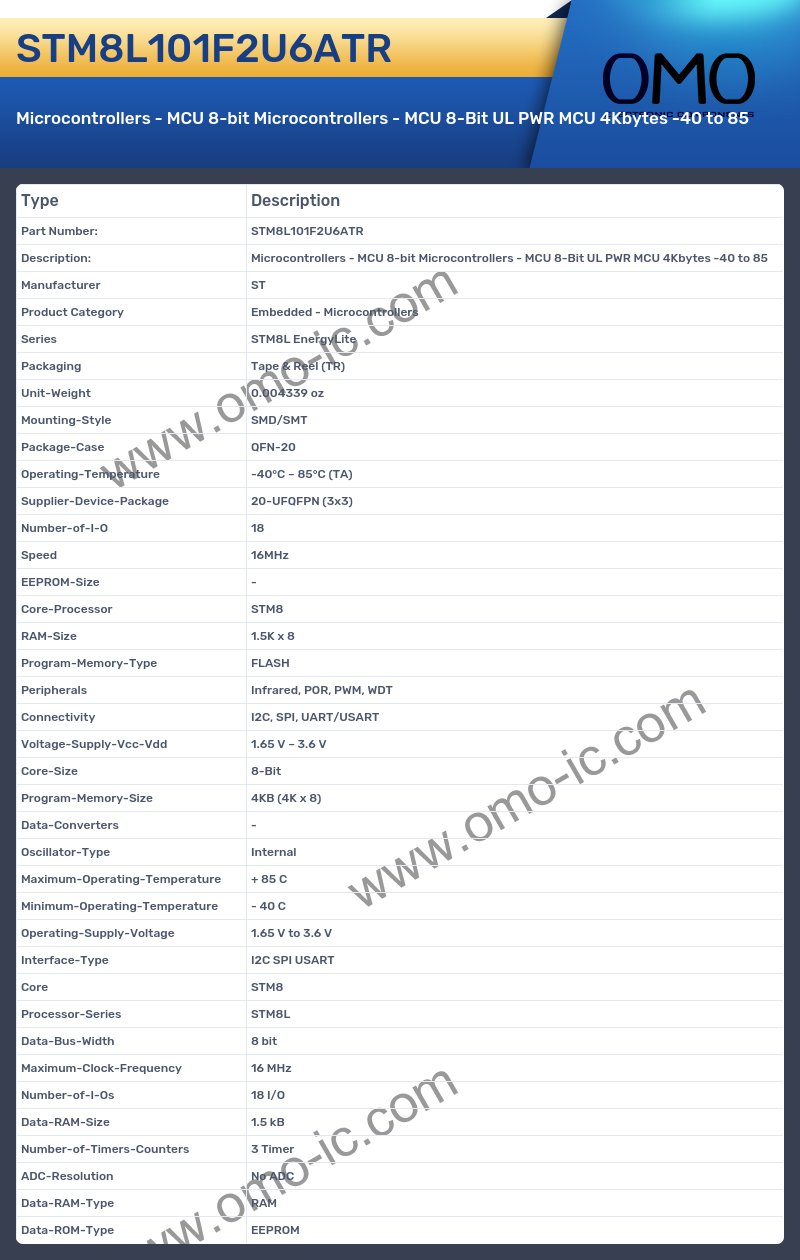

STM8L101F2U6ATR Image

STM8L101F2U6ATR Specifications

• Manufacturer ST
• Product Category Embedded - Microcontrollers
• Series STM8L EnergyLite
• Packaging Tape & Reel (TR)
• Unit-Weight 0.004339 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-20
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 20-UFQFPN (3x3)
• Number-of-I-O 18
• Speed 16MHz
• EEPROM-Size -
• Core-Processor STM8
• RAM-Size 1.5K x 8
• Program-Memory-Type FLASH
• Peripherals Infrared, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.65 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 4KB (4K x 8)
• Data-Converters -
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.65 V to 3.6 V
• Interface-Type I2C SPI USART
• Core STM8
• Processor-Series STM8L
• Data-Bus-Width 8 bit
• Maximum-Clock-Frequency 16 MHz
• Number-of-I-Os 18 I/O
• Data-RAM-Size 1.5 kB
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution No ADC
• Data-RAM-Type RAM
• Data-ROM-Type EEPROM
