STPS20M100ST

STPS20M100ST Overview

Product belongs to the STPS20M100S series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Through Hole mounting type Supplier device package: TO-220AB Configuration Single Dual Anode Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 40μA @ 100V Current-Reverse-Leakage-Vr 1. Vf Max 850mV @ 20A is the Voltage-Forward; Maximum DC reverse voltage 100V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.85 V Ir-Reverse-Current is 40 uA. If-Forward-Current is 20 A. VRRM (100 V) Reverse Voltage 530 A IFSM Forward Surge Current

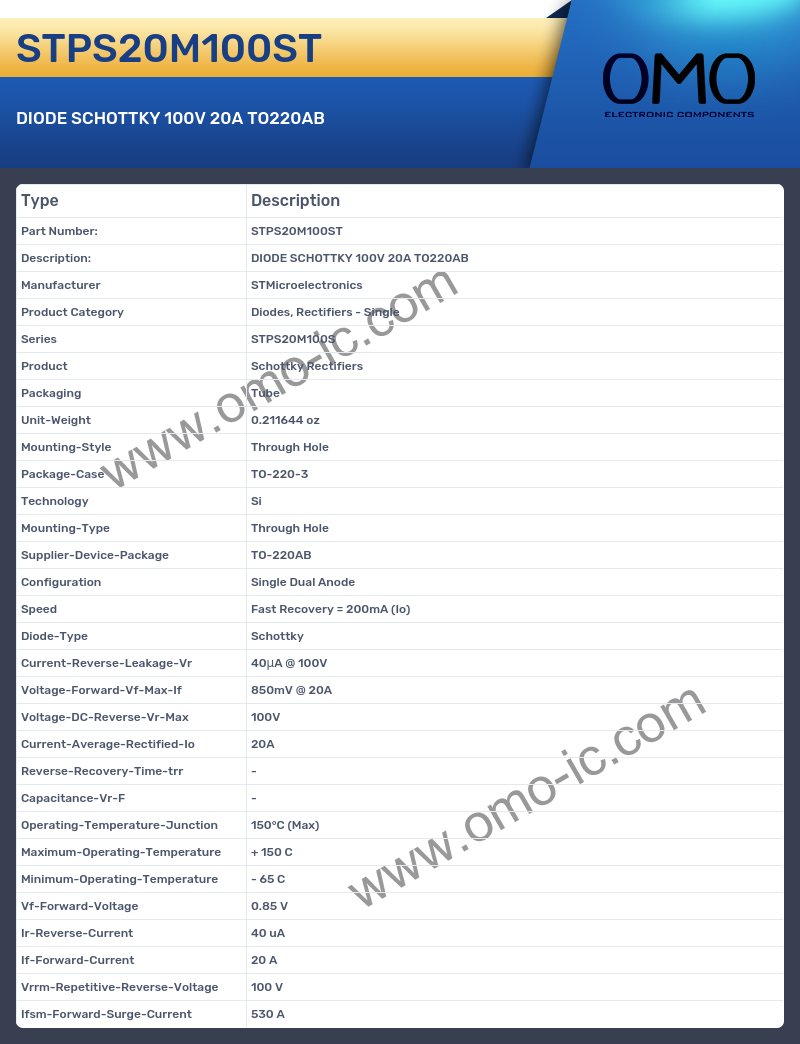

STPS20M100ST Image

STPS20M100ST Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS20M100S
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Configuration Single Dual Anode
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 40μA @ 100V
• Voltage-Forward-Vf-Max-If 850mV @ 20A
• Voltage-DC-Reverse-Vr-Max 100V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.85 V
• Ir-Reverse-Current 40 uA
• If-Forward-Current 20 A
• Vrrm-Repetitive-Reverse-Voltage 100 V
• Ifsm-Forward-Surge-Current 530 A
