STS5DNF20V

STS5DNF20V Overview

Product belongs to the STripFET II series. Digi-ReelR is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 8-SO This product uses an 2 N-Channel (Dual) FET-Type transistor. 20V This product has an 460pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 5A continuous drain-ID current at 25°C; This product has an 40 mOhm @ 2.5A, 4.5V of 12 Ohm @ 150mA, 0V.

STS5DNF20V Image

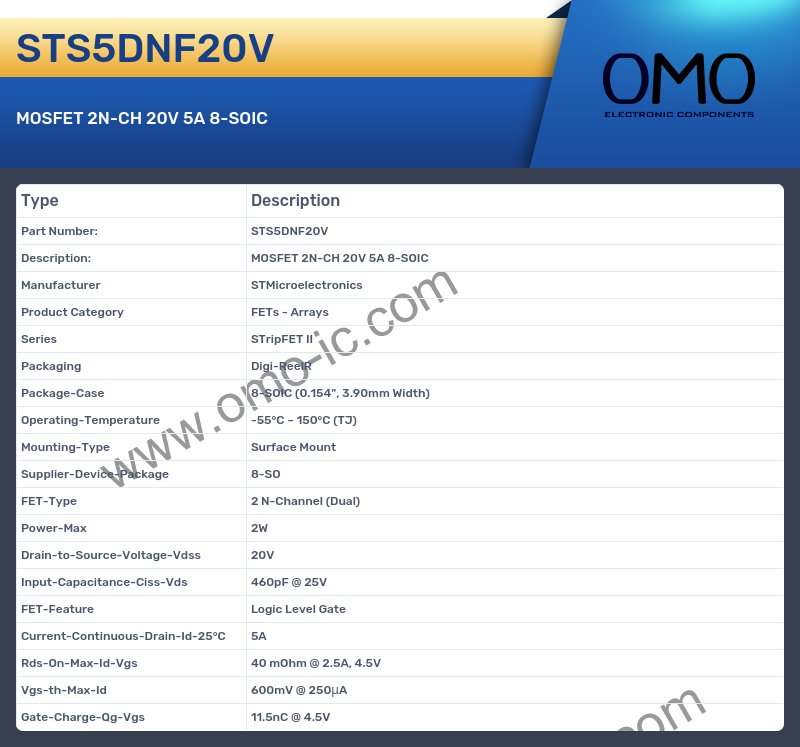

STS5DNF20V Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Arrays
• Series STripFET II
• Packaging Digi-ReelR
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SO
• FET-Type 2 N-Channel (Dual)
• Power-Max 2W
• Drain-to-Source-Voltage-Vdss 20V
• Input-Capacitance-Ciss-Vds 460pF @ 25V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 5A
• Rds-On-Max-Id-Vgs 40 mOhm @ 2.5A, 4.5V
• Vgs-th-Max-Id 600mV @ 250μA
• Gate-Charge-Qg-Vgs 11.5nC @ 4.5V
