STWD100YNYWY3F

STWD100YNYWY3F Overview

Product belongs to the Automotive, AEC-Q100 series. Type: Watchdog Circuit Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-23-5L Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Open Drain Push-Pull Supplier device package: SOT-23-5 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 1.12 s Minimum. This product's -. Power-off control: 320 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 13 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V This product includes Watchdog This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support Chip Enable. This product does not have No capability.

STWD100YNYWY3F Image

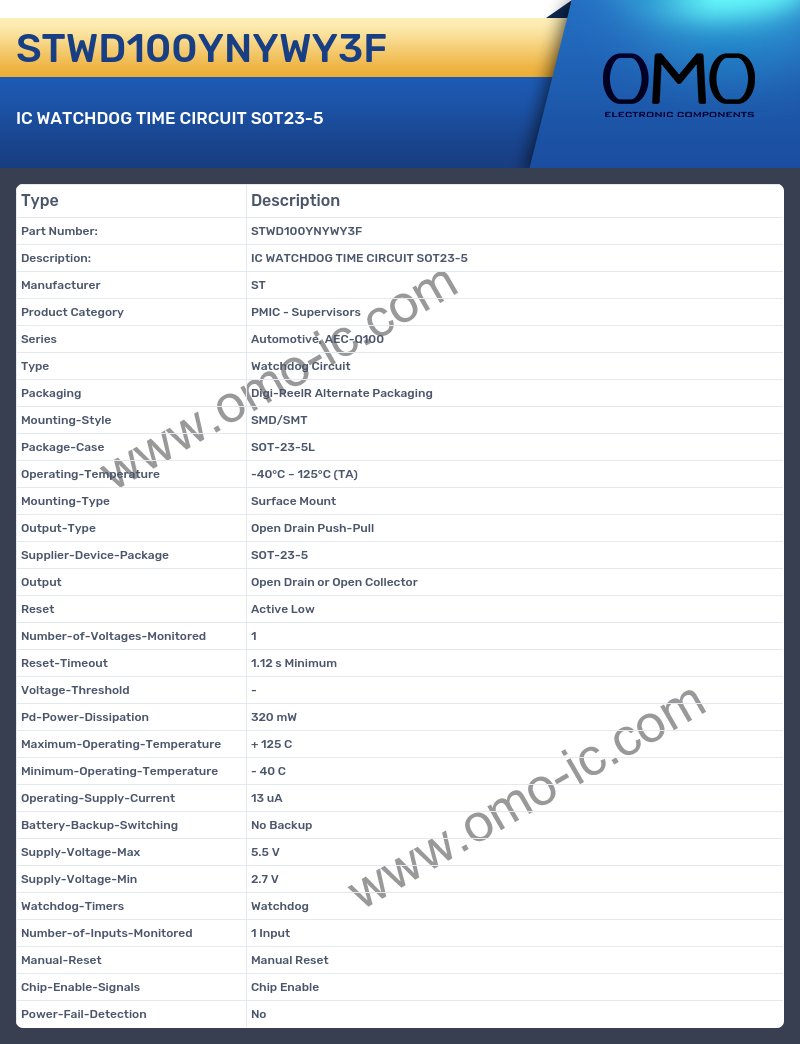

STWD100YNYWY3F Specifications

• Manufacturer ST
• Product Category PMIC - Supervisors
• Series Automotive, AEC-Q100
• Type Watchdog Circuit
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5L
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Drain Push-Pull
• Supplier-Device-Package SOT-23-5
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 1.12 s Minimum
• Voltage-Threshold -
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 13 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Watchdog-Timers Watchdog
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals Chip Enable
• Power-Fail-Detection No
