SW06GSZ

SW06GSZ Overview

Product belongs to the SW06 series. Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Configuration 4 x SPST Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 0 V to 36 V supply voltage for reliable performance. Maximum supply current: 9 mA Maximum supply voltage of 36 V Minimum supply voltage is 0 V SOIC-16 Maximum dual supply voltage: +/- 18 V Minimum dual supply voltage of +/- 12 V Single Supply Dual Supply supply type Max on-resistance of 150 Ohms Maximum off time: 500 ns 4 Switch switch functionality Maximum on-time: 700 ns The maximum switch voltage for this product is 11 V The +/- 15 V. The 10 mA

SW06GSZ Image

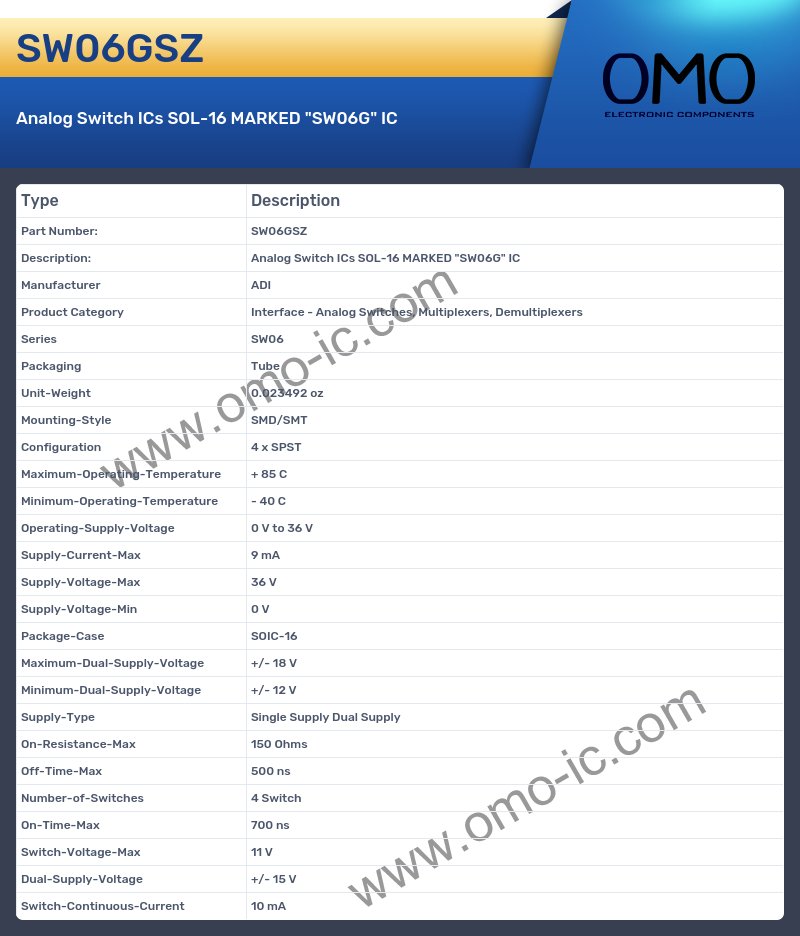

SW06GSZ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series SW06
• Packaging Tube
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Configuration 4 x SPST
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 0 V to 36 V
• Supply-Current-Max 9 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 0 V
• Package-Case SOIC-16
• Maximum-Dual-Supply-Voltage +/- 18 V
• Minimum-Dual-Supply-Voltage +/- 12 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 150 Ohms
• Off-Time-Max 500 ns
• Number-of-Switches 4 Switch
• On-Time-Max 700 ns
• Switch-Voltage-Max 11 V
• Dual-Supply-Voltage +/- 15 V
• Switch-Continuous-Current 10 mA
