TC2055-5.0VCTTR

TC2055-5.0VCTTR Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: LDO with Shutdown Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 5 V 55 uA is 92 nA. Maximum Input Voltage: 6 V Output current: 100 mA The product's 2.7 V is 5.1 V. Load regulation is 0.33 %. The voltage regulation accuracy of this product is 0.4 %. The 90 mV. The maximum 70 mV is 360 mV. This product's 0.05 % is 0.01 %/V. The product's 50 dB is -20 dB. This product has an - of 2.7 V to 5.5 V.

TC2055-5.0VCTTR Image

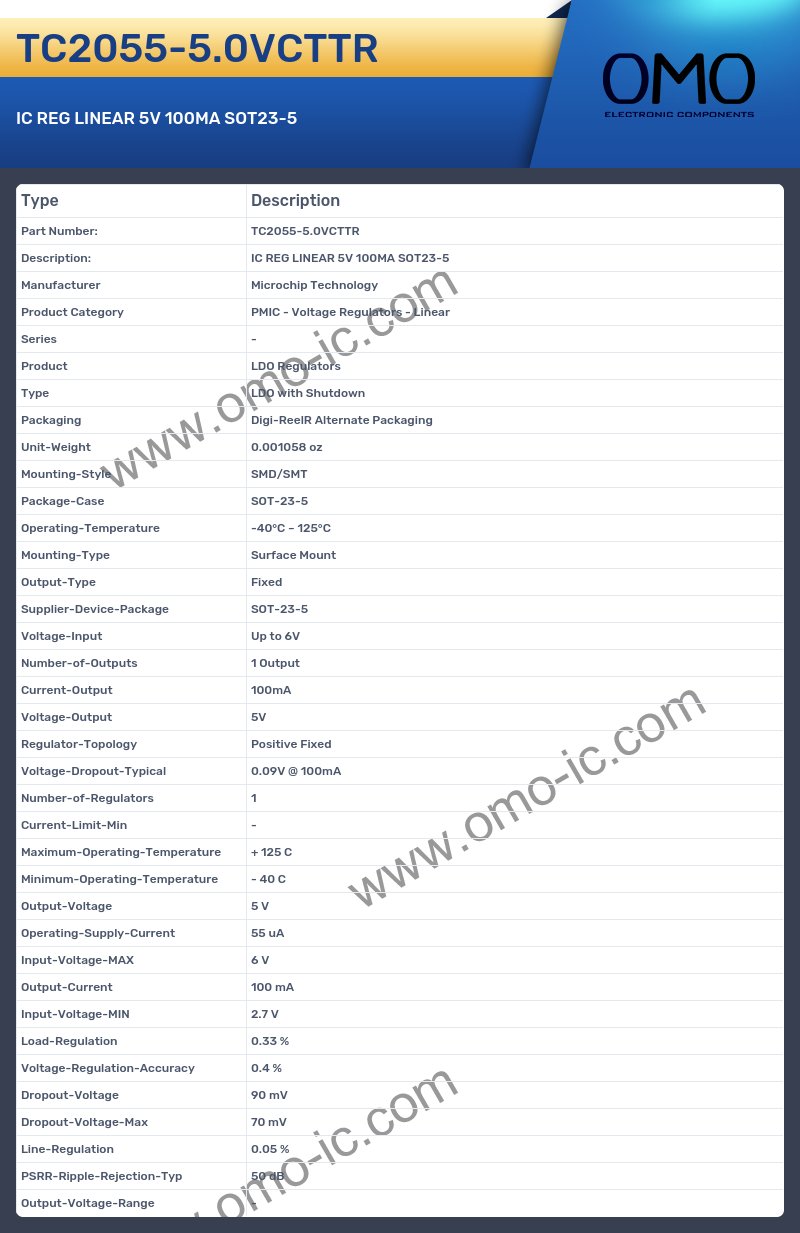

TC2055-5.0VCTTR Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type LDO with Shutdown
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 100mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.09V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Operating-Supply-Current 55 uA
• Input-Voltage-MAX 6 V
• Output-Current 100 mA
• Input-Voltage-MIN 2.7 V
• Load-Regulation 0.33 %
• Voltage-Regulation-Accuracy 0.4 %
• Dropout-Voltage 90 mV
• Dropout-Voltage-Max 70 mV
• Line-Regulation 0.05 %
• PSRR-Ripple-Rejection-Typ 50 dB
• Output-Voltage-Range -
