TC32MCDB713

TC32MCDB713 Overview

Product belongs to the ECONOMONITOR series. Type: Simple Reset/Power-On Reset Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style SOT-223-3 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: SOT-223-3 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 500 ms Minimum. This product's 4.375V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 200 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V This product includes Watchdog This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 900 ms is 200 ms. The 4.5 V is 2.35 V. 4.25 V is set to 2.29 V.

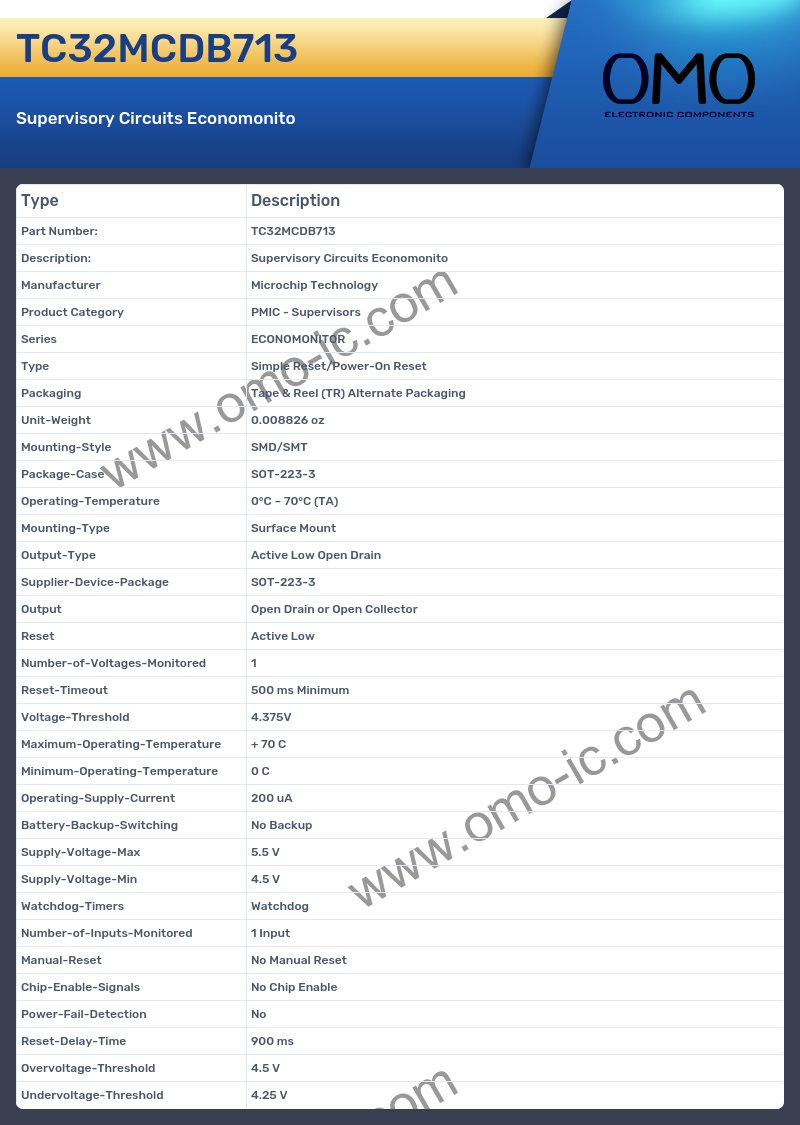

TC32MCDB713 Image

TC32MCDB713 Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Supervisors
• Series ECONOMONITOR
• Type Simple Reset/Power-On Reset
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.008826 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223-3
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package SOT-223-3
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 500 ms Minimum
• Voltage-Threshold 4.375V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 200 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Watchdog-Timers Watchdog
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 900 ms
• Overvoltage-Threshold 4.5 V
• Undervoltage-Threshold 4.25 V
