TC4420EOA

TC4420EOA Overview

Product belongs to the - series. This product is categorized as MOSFET Gate Drivers Type: Low-Side Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 25ns, 25ns -40°C ~ 150°C (TJ) mounting type Supplier device package: 8-SOIC (0.154", 3.90mm Width) Resolution-Bits: 1 Data-Interface: Single The Voltage-Supply-Analog is Non-Inverting. The Voltage Supply Digital for this product is -. Configuration Non-Inverting 4.5 V ~ 18 V is supported. Number-of-Outputs: 1 Power-off control: 470 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.025 V 3 mA is 92 nA. Output current: 6 A This product has a 35 ns of 16 ns. This product has a 35 ns of 16 ns. Maximum supply voltage of 18 V Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 75 ns. 75 ns maximum turn-on delay time

TC4420EOA Image

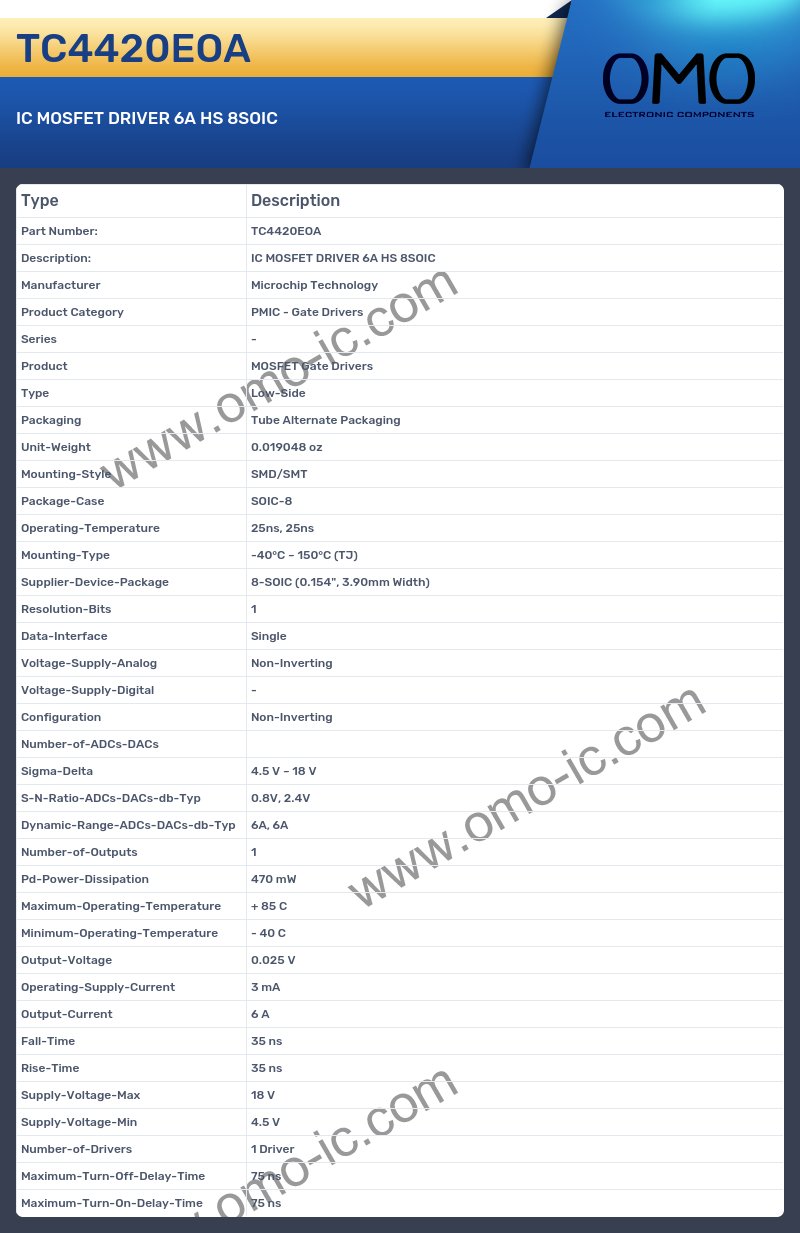

TC4420EOA Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Gate Drivers
• Series -
• Product MOSFET Gate Drivers
• Type Low-Side
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 25ns, 25ns
• Mounting-Type -40°C ~ 150°C (TJ)
• Supplier-Device-Package 8-SOIC (0.154", 3.90mm Width)
• Resolution-Bits 1
• Data-Interface Single
• Voltage-Supply-Analog Non-Inverting
• Voltage-Supply-Digital -
• Configuration Non-Inverting
• Number-of-ADCs-DACs
• Sigma-Delta 4.5 V ~ 18 V
• S-N-Ratio-ADCs-DACs-db-Typ 0.8V, 2.4V
• Dynamic-Range-ADCs-DACs-db-Typ 6A, 6A
• Number-of-Outputs 1
• Pd-Power-Dissipation 470 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.025 V
• Operating-Supply-Current 3 mA
• Output-Current 6 A
• Fall-Time 35 ns
• Rise-Time 35 ns
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 75 ns
• Maximum-Turn-On-Delay-Time 75 ns
