THS1206QDA

THS1206QDA Overview

Product belongs to the THS1206 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.006071 oz SMD/SMT Mounting-Style TSSOP-32 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Channel/4 Channel Supplier device package: 32-TSSOP This product's 6M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 3 V ~ 5.25 V. Configuration S/H-MUX-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 216 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 69 dB The THS1206M-EVM. Number-of-Converters: 1 Converter 6 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 3 V to 5.25 V Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: +/- 1 LSB

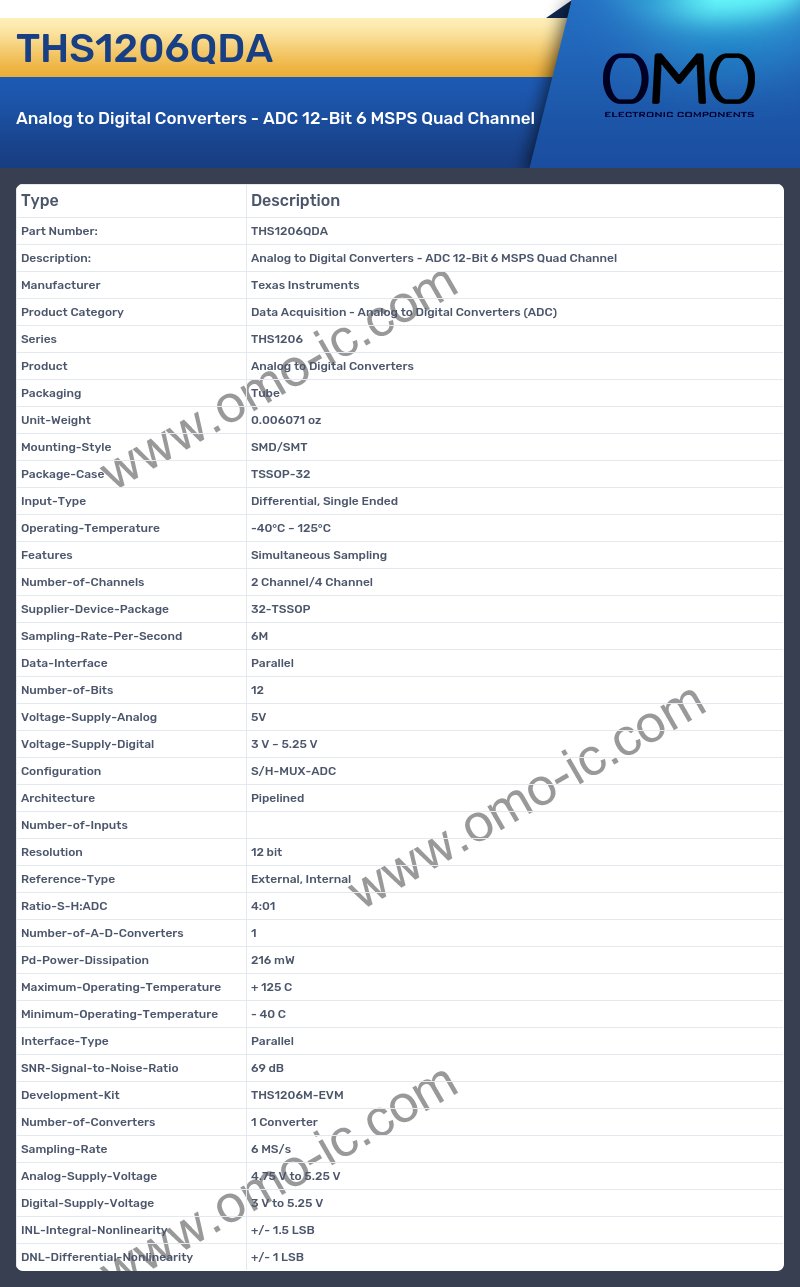

THS1206QDA Image

THS1206QDA Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series THS1206
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.006071 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-32
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel/4 Channel
• Supplier-Device-Package 32-TSSOP
• Sampling-Rate-Per-Second 6M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 3 V ~ 5.25 V
• Configuration S/H-MUX-ADC
• Architecture Pipelined
• Number-of-Inputs
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 4:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 216 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 69 dB
• Development-Kit THS1206M-EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 6 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 3 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
