THS5641AIPWR

THS5641AIPWR Overview

Product belongs to the CommsDAC series. This product is categorized as Digital to Analog Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 28-TSSOP Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 3 V ~ 5.5 V. The Voltage Supply Digital for this product is 3 V ~ 5.5 V. The architecture of this product is Current Steering . External, Internal is the reference type. Number of D-A converters: 1 The 35μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 50 dB The THS5641EVM. Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V Number-of-Converters: 1 Converter 100 MS/s Sampling Rate

THS5641AIPWR Image

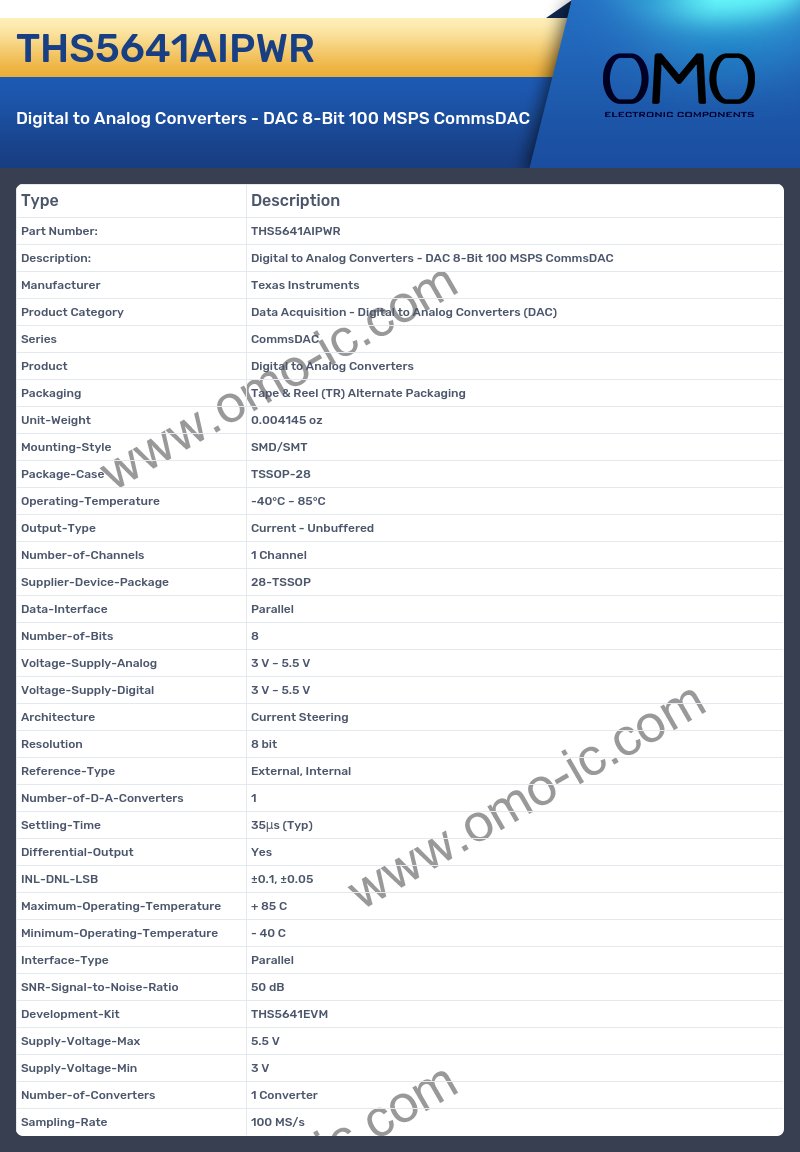

THS5641AIPWR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series CommsDAC
• Product Digital to Analog Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-TSSOP
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 3 V ~ 5.5 V
• Voltage-Supply-Digital 3 V ~ 5.5 V
• Architecture Current Steering
• Resolution 8 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 35μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±0.1, ±0.05
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 50 dB
• Development-Kit THS5641EVM
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 1 Converter
• Sampling-Rate 100 MS/s
