THS6022CPWP

THS6022CPWP Overview

Product belongs to the THS6022 series. This product is categorized as Operational Amplifiers Type: Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.002046 oz SMD/SMT Mounting-Style HTSSOP-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Number of channels: 2 Channel Voltage Supply Range: 5 V ~ 15 V Supplier device package: 14-HTSSOP Topology: Current Feedback feedback This product has a 2/0 number of drivers and receivers. The amplifier is of Current Feedback type. Power-off control: 3300 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 18 mA is 92 nA. Maximum supply voltage of 32 V Minimum supply voltage is 9 V Input bias current of 9 uA The 5 mV. The 68 dB. The CMRR-Common-Mode-Rejection-Ratio is 62 dB. The 1.7 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 715 MHz is the 3-dB bandwidth of the product.

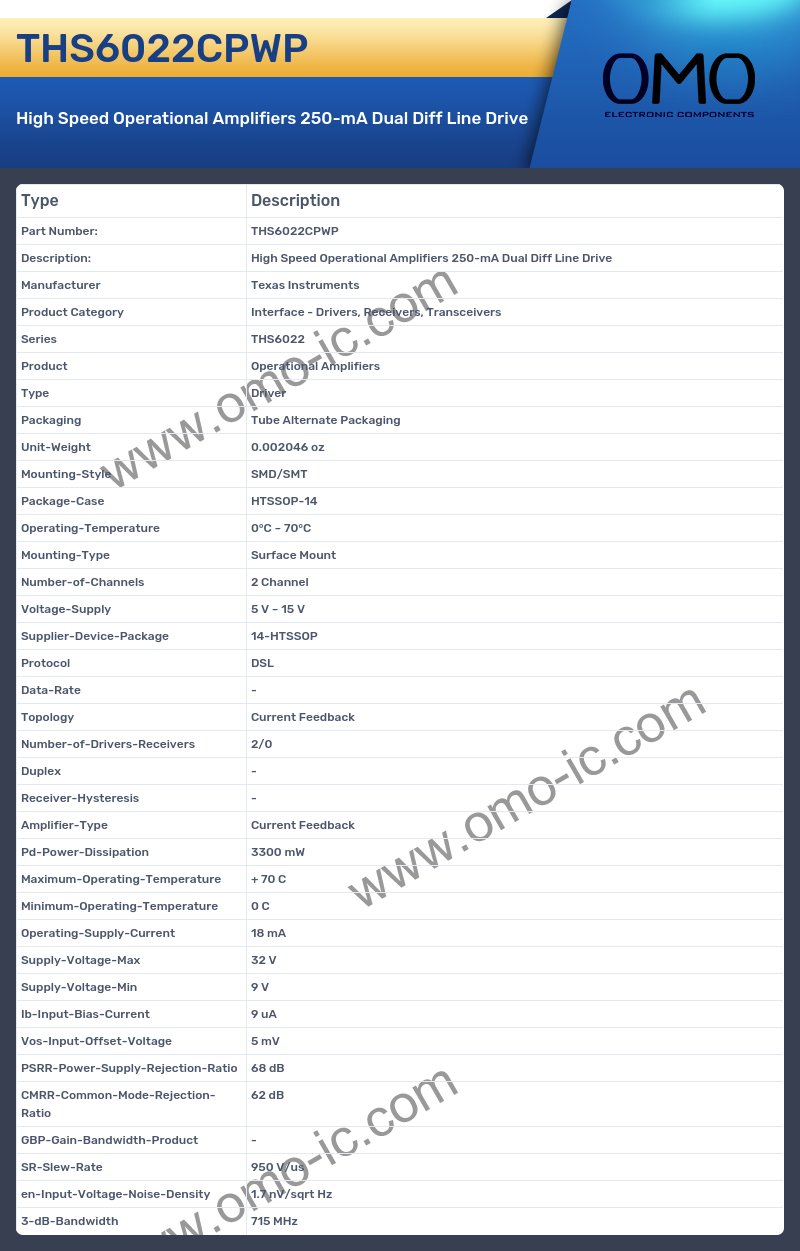

THS6022CPWP Image

THS6022CPWP Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series THS6022
• Product Operational Amplifiers
• Type Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002046 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Voltage-Supply 5 V ~ 15 V
• Supplier-Device-Package 14-HTSSOP
• Protocol DSL
• Data-Rate -
• Topology Current Feedback
• Number-of-Drivers-Receivers 2/0
• Duplex -
• Receiver-Hysteresis -
• Amplifier-Type Current Feedback
• Pd-Power-Dissipation 3300 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 18 mA
• Supply-Voltage-Max 32 V
• Supply-Voltage-Min 9 V
• Ib-Input-Bias-Current 9 uA
• Vos-Input-Offset-Voltage 5 mV
• PSRR-Power-Supply-Rejection-Ratio 68 dB
• CMRR-Common-Mode-Rejection-Ratio 62 dB
• GBP-Gain-Bandwidth-Product -
• SR-Slew-Rate 950 V/us
• en-Input-Voltage-Noise-Density 1.7 nV/sqrt Hz
• 3-dB-Bandwidth 715 MHz
