TIP50 Overview

Product belongs to the 500V Transistors series. Bulk Alternate Packaging is the packaging method for this product The TIP50_NL is listed as a Part-Aliase. Weight of 0.042823 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220 Configuration Single Transistor type: NPN Maximum current collector Ic is 1A . Maximum collector-emitter breakdown voltage of 400V DC current gain minimum (hFE) of Ic/Vce at 30 @ 300mA, 10V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1V @ 200mA, 1A Power-off control: 40 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 400 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1 V The 500 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 1 A Gain-Bandwidth-Product: 10 MHz This product is capable of handling a 1 A continuous collector current. Minimum hfe for DC collector-base gain is 30. 150 of 605.

TIP50 Image

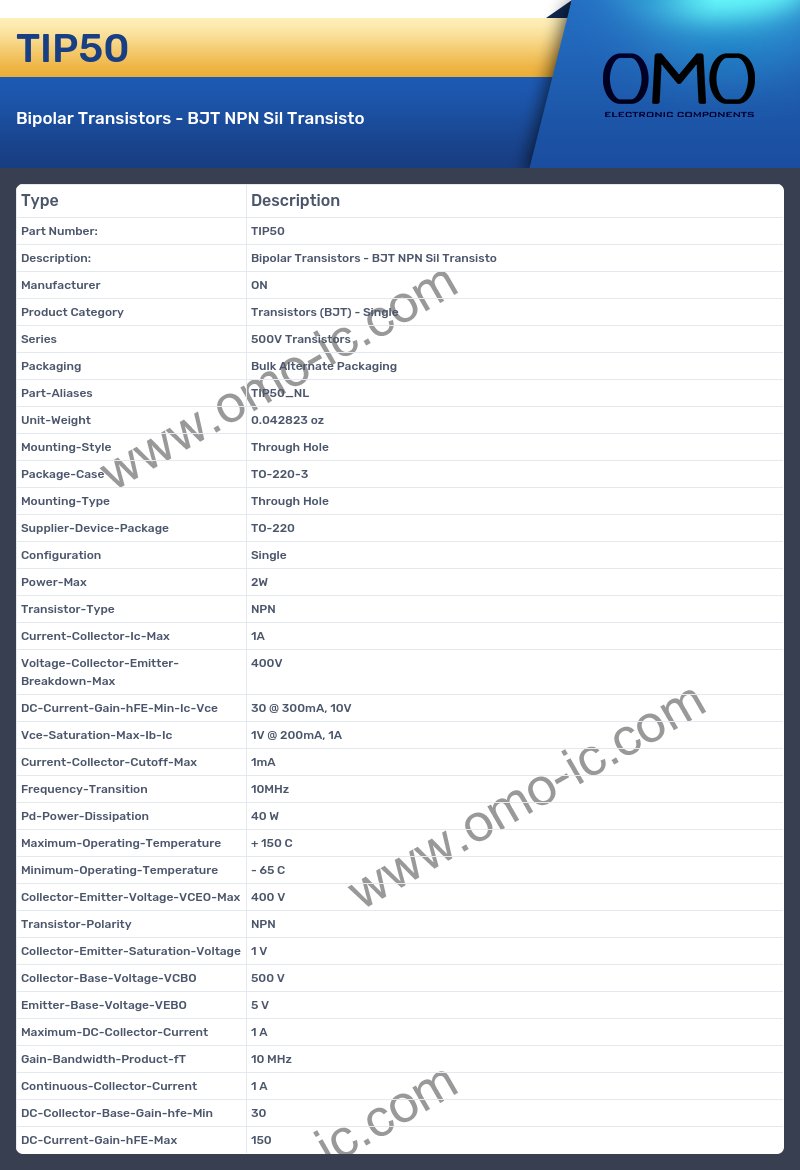

TIP50 Specifications

• Manufacturer ON
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Bulk Alternate Packaging
• Part-Aliases TIP50_NL
• Unit-Weight 0.042823 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Configuration Single
• Power-Max 2W
• Transistor-Type NPN
• Current-Collector-Ic-Max 1A
• Voltage-Collector-Emitter-Breakdown-Max 400V
• DC-Current-Gain-hFE-Min-Ic-Vce 30 @ 300mA, 10V
• Vce-Saturation-Max-Ib-Ic 1V @ 200mA, 1A
• Current-Collector-Cutoff-Max 1mA
• Frequency-Transition 10MHz
• Pd-Power-Dissipation 40 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 400 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 1 V
• Collector-Base-Voltage-VCBO 500 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 1 A
• Gain-Bandwidth-Product-fT 10 MHz
• Continuous-Collector-Current 1 A
• DC-Collector-Base-Gain-hfe-Min 30
• DC-Current-Gain-hFE-Max 150
