| Mfr. #: | TL2844P |
|---|---|
| 제조사: | Texas Instruments |
| 설명: | Switching Controllers Current-Mode PWM Controlle |
| 수명 주기: | 이 제조업체의 새 제품입니다. |
| 데이터 시트: | TL2844P 데이터 시트 |
Product belongs to the TL2844 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Supplier device package: 8-PDIP Number-of-Outputs: 1 Output Output-Isolation: - This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0 V to 30 V Output current: 200 mA Switching frequency is 500 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 50 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

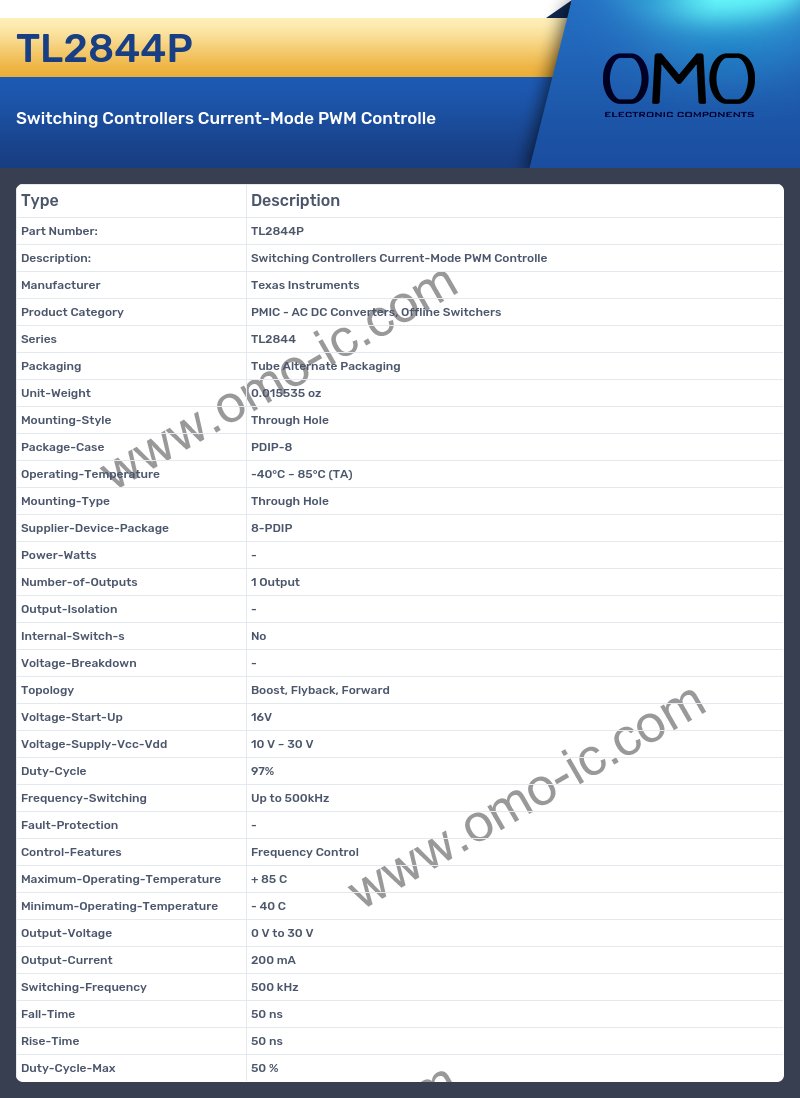

TL2844P Specifications
