TLC1543CDBR

TLC1543CDBR Overview

Product belongs to the TLC1543 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 11 Channel Supplier device package: 20-SSOP This product's 38k. Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial 4-Wire SPI interface type Number-of-Converters: 1 Converter 38 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 4.5 V to 5.5 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

TLC1543CDBR Image

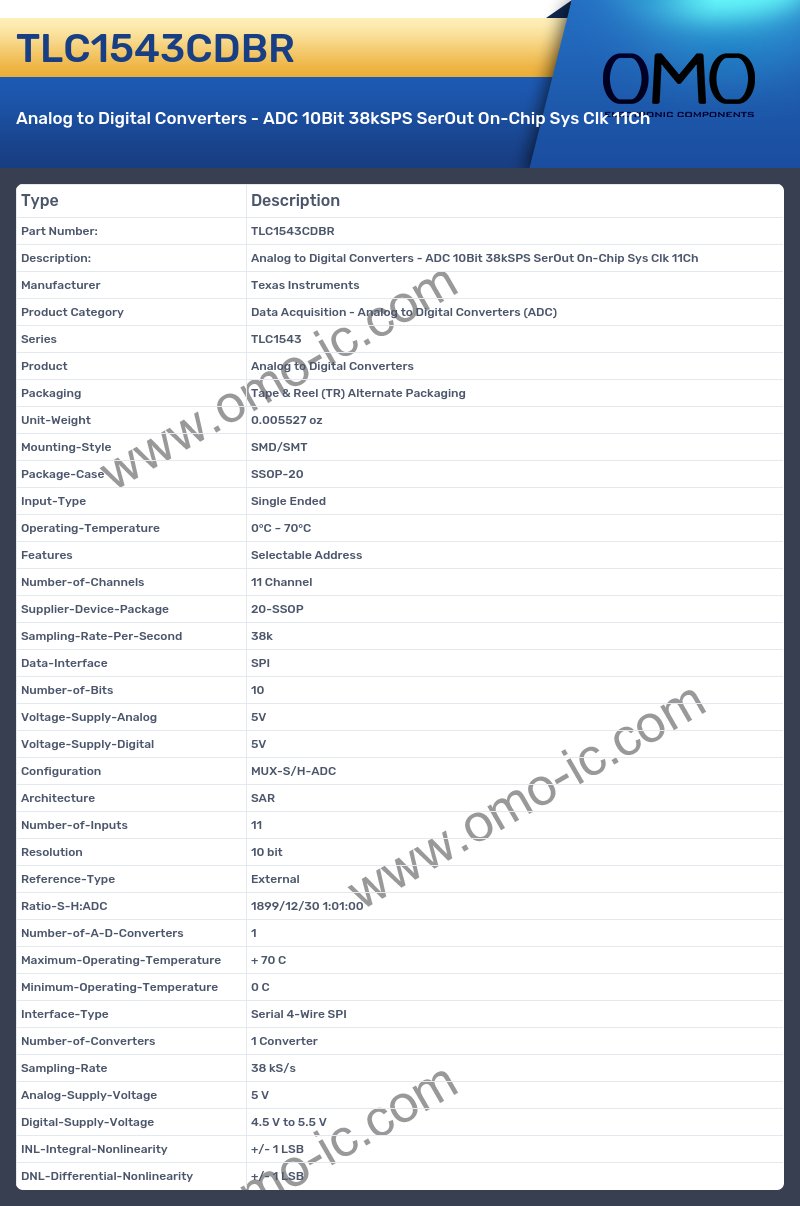

TLC1543CDBR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC1543
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.005527 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features Selectable Address
• Number-of-Channels 11 Channel
• Supplier-Device-Package 20-SSOP
• Sampling-Rate-Per-Second 38k
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 11
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial 4-Wire SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 38 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 4.5 V to 5.5 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
