TLC5540CPW

TLC5540CPW Overview

Product belongs to the TLC5540 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.003266 oz SMD/SMT Mounting-Style TSSOP-24 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 24-TSSOP This product's 40M. Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Flash . External is the reference type. 1 units Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Signal-to-Noise Ratio of 47 dB The TLC5540EVM. Number-of-Converters: 1 Converter 40 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

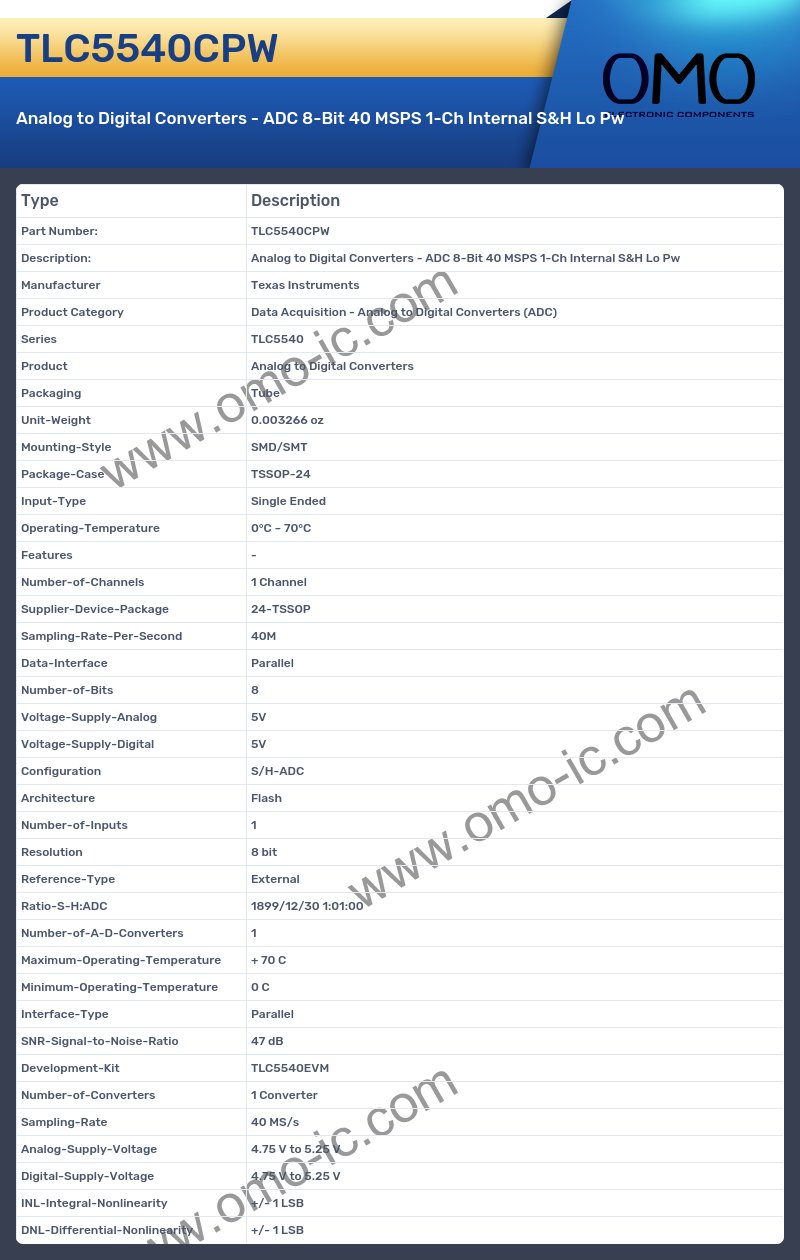

TLC5540CPW Image

TLC5540CPW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC5540
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.003266 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-24
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-TSSOP
• Sampling-Rate-Per-Second 40M
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Flash
• Number-of-Inputs 1
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 47 dB
• Development-Kit TLC5540EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 40 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
