TLC5917IDR

TLC5917IDR Overview

Product belongs to the TLC5917 series. Type: Linear Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 This product's 30MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Constant Current Versatile Signage applications for maximum usability Supplier device package: 16-SOIC Number-of-Outputs: 8 Current-Output-Channel is 120mA This product has Yes. Topology: Shift Register feedback The maximum voltage supply is 5.5V. The minimum 3V required for voltage supply. Output voltage: 20V Dimming control is done through - communication. Power-off control: 1.5 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The operating frequency is 30 MHz. Input Voltage Range: 3 V to 5.5 V Output current: 120 mA Maximum supply current: 22 mA High-Level-Output-Current of - 1 mA 1 mA low-level output current

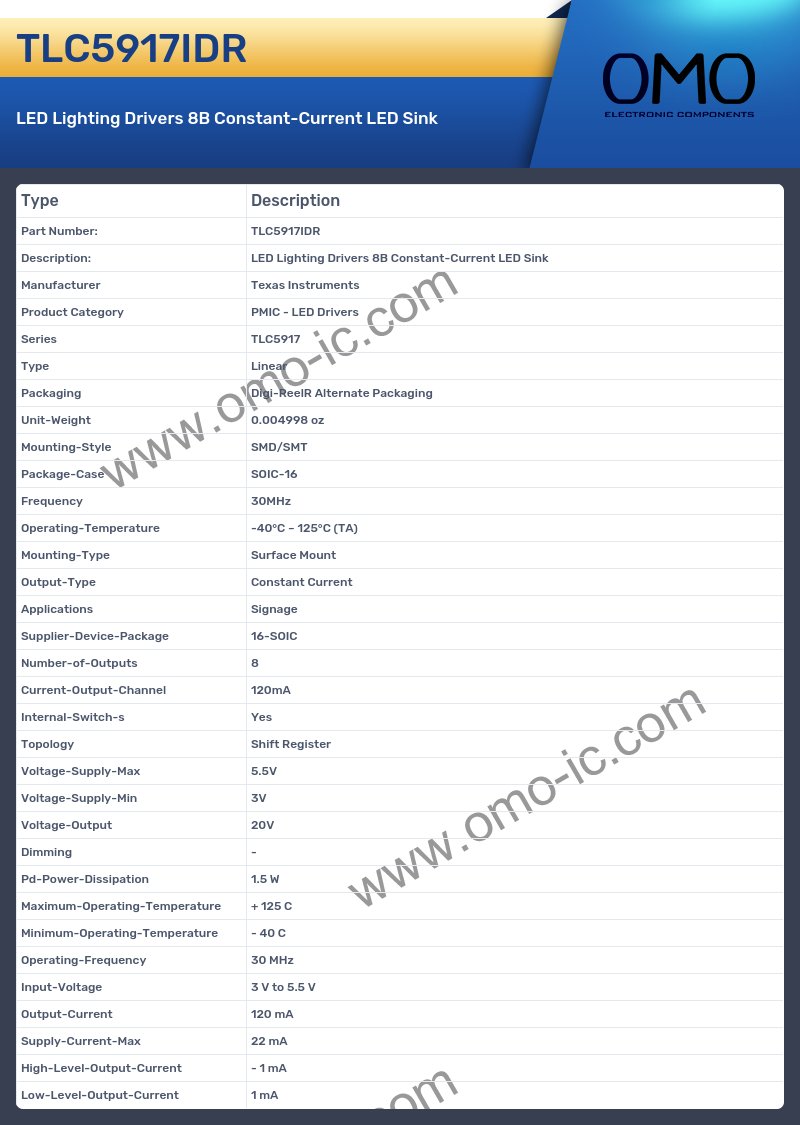

TLC5917IDR Image

TLC5917IDR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TLC5917
• Type Linear
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Frequency 30MHz
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Constant Current
• Applications Signage
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 8
• Current-Output-Channel 120mA
• Internal-Switch-s Yes
• Topology Shift Register
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 3V
• Voltage-Output 20V
• Dimming -
• Pd-Power-Dissipation 1.5 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 30 MHz
• Input-Voltage 3 V to 5.5 V
• Output-Current 120 mA
• Supply-Current-Max 22 mA
• High-Level-Output-Current - 1 mA
• Low-Level-Output-Current 1 mA
