TLC5920DLR

TLC5920DLR Overview

Product belongs to the TLC5920 series. Type: Linear Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.021175 oz SMD/SMT Mounting-Style SSOP-48 This product's 10MHz range is 0Hz to 2.2GHz. Operational temperature range: -20°C ~ 85°C (TA) Surface Mount mounting type Versatile - applications for maximum usability Supplier device package: 48-SSOP Number-of-Outputs: 16 Current-Output-Channel is 30mA This product has -. Topology: Shift Register feedback The maximum voltage supply is 5.5V. The minimum 4.5V required for voltage supply. Output voltage: - Dimming control is done through - communication. Power-off control: 1.5 W Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C The operating frequency is 10 MHz. Input Voltage Range: 4.5 V to 5.5 V Output current: 30 mA Maximum supply current: 1.6 mA High-Level-Output-Current of - 30 mA 640 mA low-level output current

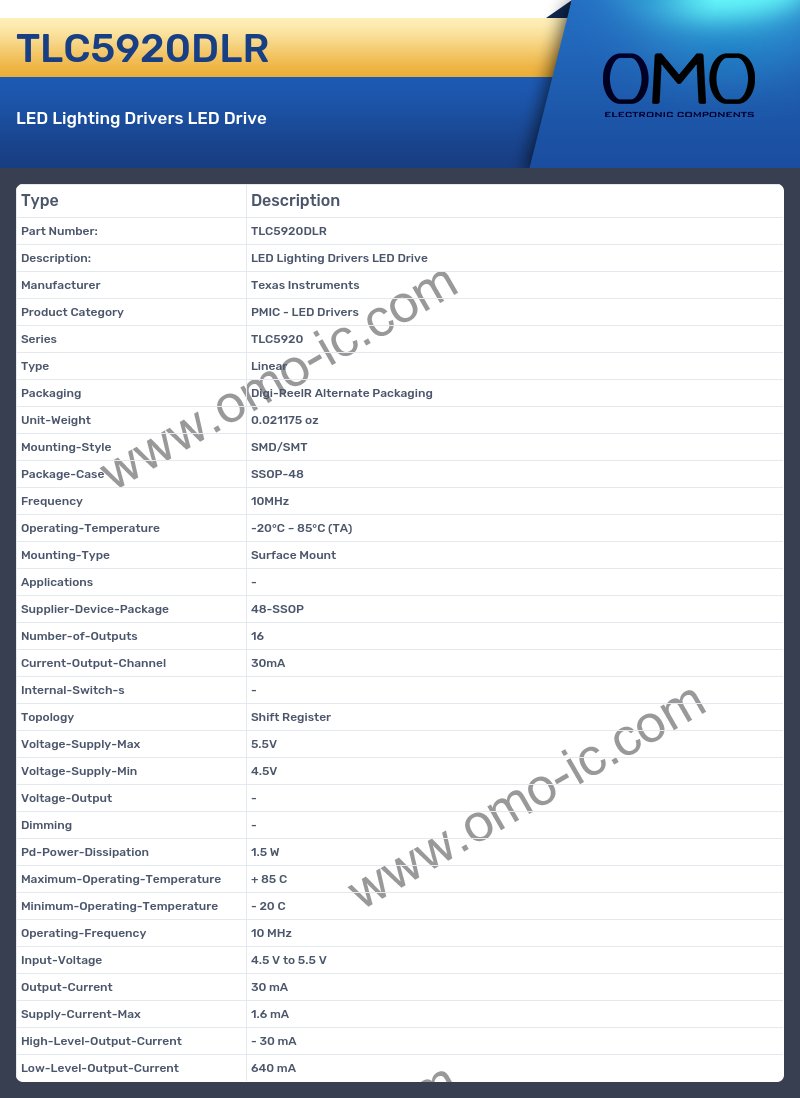

TLC5920DLR Image

TLC5920DLR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TLC5920
• Type Linear
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.021175 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-48
• Frequency 10MHz
• Operating-Temperature -20°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications -
• Supplier-Device-Package 48-SSOP
• Number-of-Outputs 16
• Current-Output-Channel 30mA
• Internal-Switch-s -
• Topology Shift Register
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 4.5V
• Voltage-Output -
• Dimming -
• Pd-Power-Dissipation 1.5 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 20 C
• Operating-Frequency 10 MHz
• Input-Voltage 4.5 V to 5.5 V
• Output-Current 30 mA
• Supply-Current-Max 1.6 mA
• High-Level-Output-Current - 30 mA
• Low-Level-Output-Current 640 mA
