TLV2770IP

TLV2770IP Overview

Product belongs to the TLV2770 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style CMOS is the technology used. Number of channels: 1 Channel The amplifier is of High Output Current Amplifier type. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 2 mA is 92 nA. Maximum supply voltage of 6 V Minimum supply voltage is 2.5 V PDIP-8 Input bias current of 60 pA The 2.5 mV. The Negative Rail to Positive Rail - 1.3 V. 50 mA The CMRR-Common-Mode-Rejection-Ratio is 60 dB. The 17 nV/sqrt Hz of this product is 110 nV/sqrt Hz. The 0.0006 pA/sqrt Hz. Maximum dual supply voltage: +/- 3 V Minimum dual supply voltage of +/- 1.25 V

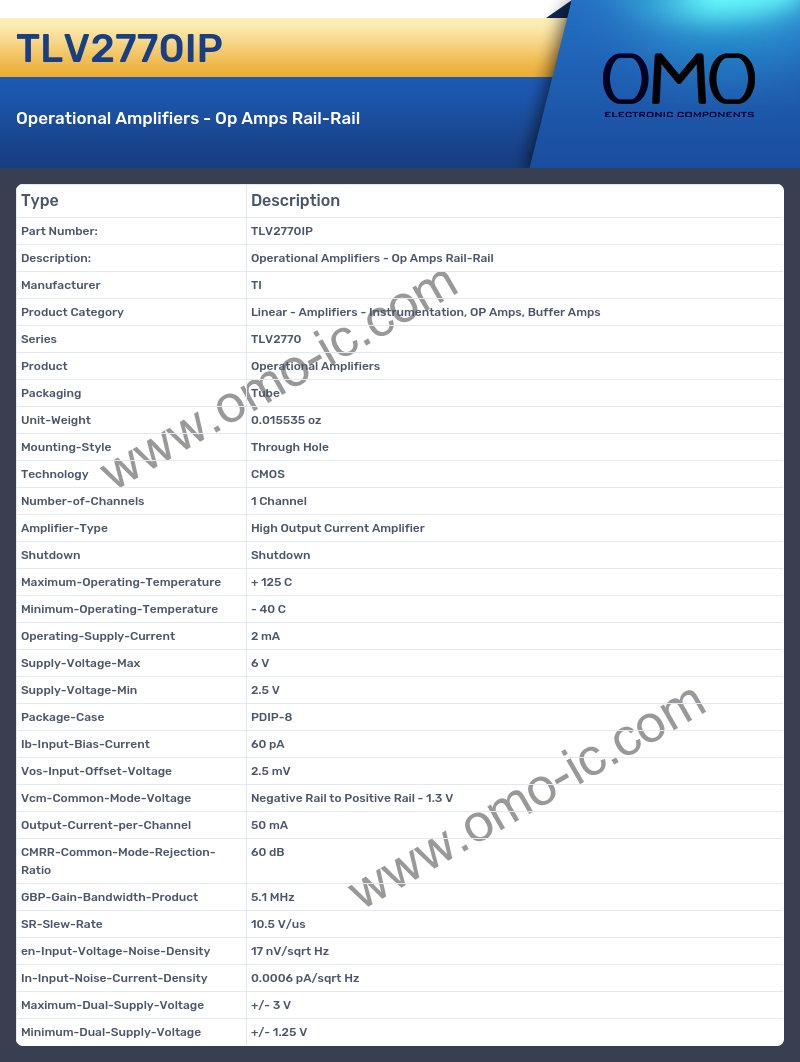

TLV2770IP Image

TLV2770IP Specifications

• Manufacturer TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series TLV2770
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Technology CMOS
• Number-of-Channels 1 Channel
• Amplifier-Type High Output Current Amplifier
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2 mA
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2.5 V
• Package-Case PDIP-8
• Ib-Input-Bias-Current 60 pA
• Vos-Input-Offset-Voltage 2.5 mV
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail - 1.3 V
• Output-Current-per-Channel 50 mA
• CMRR-Common-Mode-Rejection-Ratio 60 dB
• GBP-Gain-Bandwidth-Product 5.1 MHz
• SR-Slew-Rate 10.5 V/us
• en-Input-Voltage-Noise-Density 17 nV/sqrt Hz
• In-Input-Noise-Current-Density 0.0006 pA/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 3 V
• Minimum-Dual-Supply-Voltage +/- 1.25 V
