TMP302DDRLT

TMP302DDRLT Overview

Product belongs to the TMP302D series. This product is categorized as Single Trip Switch Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-553-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Voltage Supply Range: 1.4 V ~ 3.6 V Supplier device package: 6-SOT The Active Low. Configuration Local This product has a 8μA of 200μA. The /OverTemp of this product includes /OverTemp and /UnderTemp signals. Accuracy is rated at ±2°C . Our product delivers a 10mA of 50mA for efficient power management. Power-off control: No Shutdown The 110°C, 115°C, 120°C, 125°C. Our product features a Hot for optimal temperature regulation. Our product features a Yes for customizable control. Maximum operating temperature of + 130 C Minimum operating temperature: - 55 C 8 uA is 92 nA. - interface type Output current: 10 mA Maximum supply voltage of 3.6 VDC Minimum supply voltage is 1.4 VDC Programmable temperature threshold

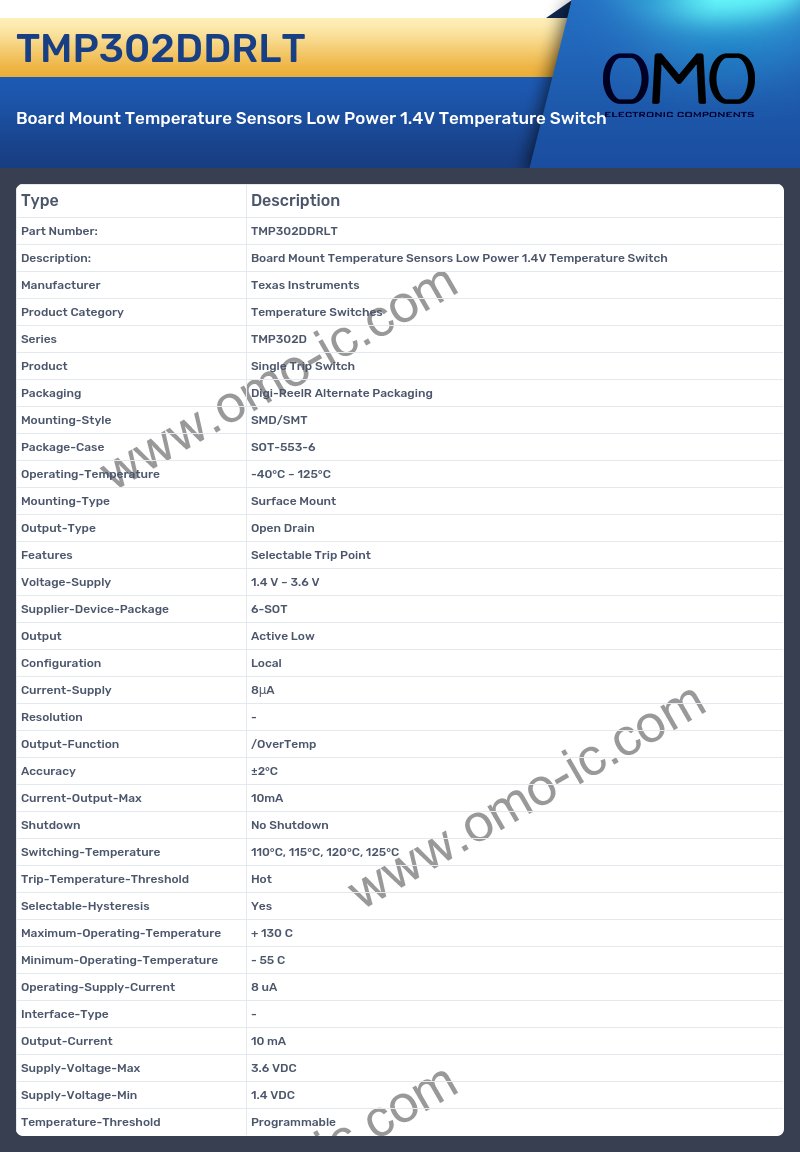

TMP302DDRLT Image

TMP302DDRLT Specifications

• Manufacturer Texas Instruments
• Product Category Temperature Switches
• Series TMP302D
• Product Single Trip Switch
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-553-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Features Selectable Trip Point
• Voltage-Supply 1.4 V ~ 3.6 V
• Supplier-Device-Package 6-SOT
• Output Active Low
• Configuration Local
• Current-Supply 8μA
• Resolution -
• Output-Function /OverTemp
• Accuracy ±2°C
• Current-Output-Max 10mA
• Shutdown No Shutdown
• Switching-Temperature 110°C, 115°C, 120°C, 125°C
• Trip-Temperature-Threshold Hot
• Selectable-Hysteresis Yes
• Maximum-Operating-Temperature + 130 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 8 uA
• Interface-Type -
• Output-Current 10 mA
• Supply-Voltage-Max 3.6 VDC
• Supply-Voltage-Min 1.4 VDC
• Temperature-Threshold Programmable
