TPN3021RL

TPN3021RL Overview

Product belongs to the TPN, TRISIL series. Type: Tripolar Overvoltage Protection for Network Interface Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 1.65 mm. 5(Max) mm length of the product The 4(Max) mm is at most 7.6 mm. 8-SOIC (0.154", 3.90mm Width) The capacitance of this product is 16pF. Number of channels: 2 Channel 3 element The Voltage-Breakover of the product is 38V. The Voltage-Off-State is 28V. 100A of Current-Peak-Pulse-8-20μs; 30mA Current Holding-Ih; Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 4 uA Peak Surge Current The Cd-Diode-Capacitance is 16 pF 28 V working voltage Polarity: Bidirectional

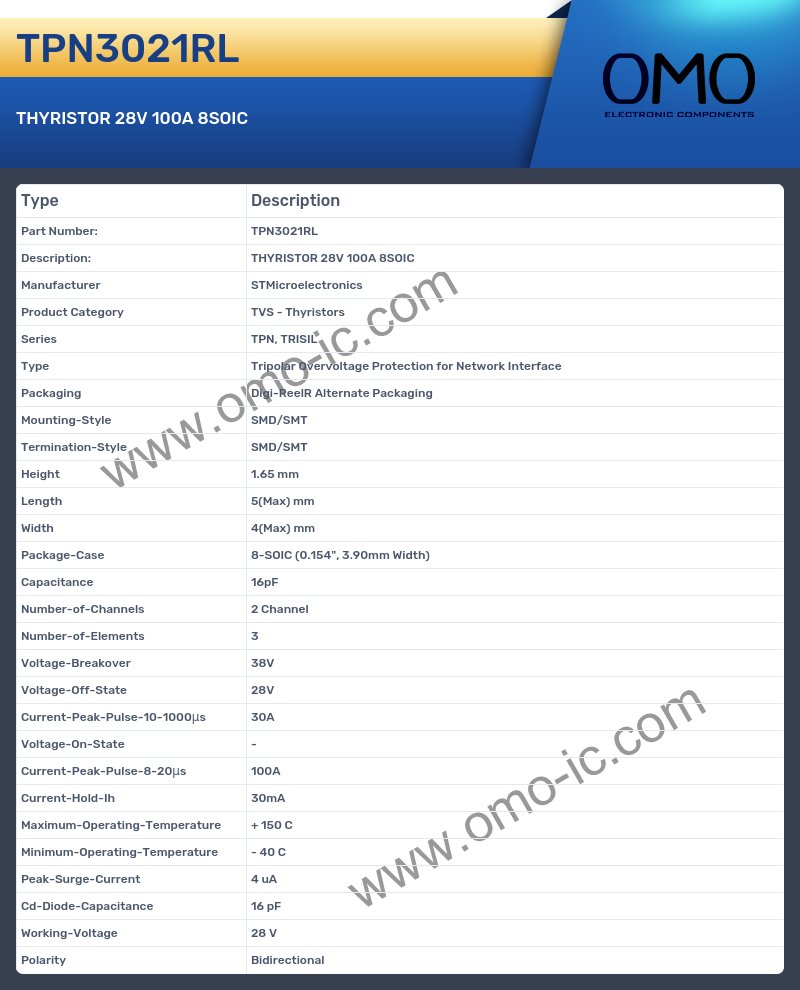

TPN3021RL Image

TPN3021RL Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Thyristors
• Series TPN, TRISIL
• Type Tripolar Overvoltage Protection for Network Interface
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Height 1.65 mm
• Length 5(Max) mm
• Width 4(Max) mm
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Capacitance 16pF
• Number-of-Channels 2 Channel
• Number-of-Elements 3
• Voltage-Breakover 38V
• Voltage-Off-State 28V
• Current-Peak-Pulse-10-1000μs 30A
• Voltage-On-State -
• Current-Peak-Pulse-8-20μs 100A
• Current-Hold-Ih 30mA
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Peak-Surge-Current 4 uA
• Cd-Diode-Capacitance 16 pF
• Working-Voltage 28 V
• Polarity Bidirectional
