TPS2032D

TPS2032D Overview

Product belongs to the TPS2032 series. This product is categorized as USB Current Limited Power Switches Type: High Side Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-SOIC The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 33 mOhm. Voltage-Load range is 2.7 V ~ 5.5 V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. Output current: 1 A The TPS2032EVM-290. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Max on-resistance of 33 mOhms This product's 1.5 A feature is adjustable.

TPS2032D Image

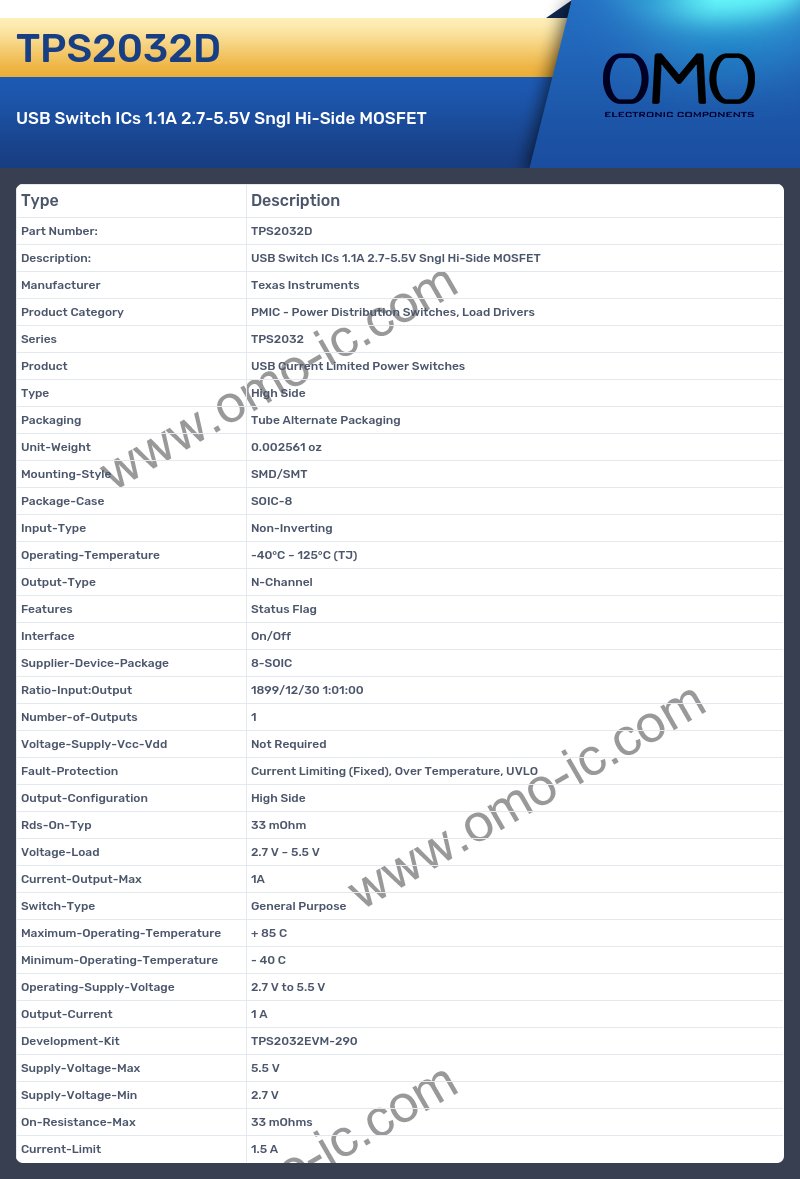

TPS2032D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2032
• Product USB Current Limited Power Switches
• Type High Side
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 8-SOIC
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, UVLO
• Output-Configuration High Side
• Rds-On-Typ 33 mOhm
• Voltage-Load 2.7 V ~ 5.5 V
• Current-Output-Max 1A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Output-Current 1 A
• Development-Kit TPS2032EVM-290
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• On-Resistance-Max 33 mOhms
• Current-Limit 1.5 A
