TPS55340RTER

TPS55340RTER Overview

Product belongs to the TPS55340 series. Type: Voltage Converter Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications WQFN-16 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-WQFN (3x3) Number-of-Outputs: 1 Topology: Boost, Flyback, SEPIC feedback This product features 'Frequency-Switching' at 94kHz ~ 1.14MHz for optimal performance. The Positive, Isolation Capable. Minimum fixed output voltage is 2.9V . The value of No is included as a product attribute. The minimum input voltage is 2.9V. The 32V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.9 V to 38 V Input Voltage Range: 2.9 V to 32 V Maximum Input Voltage: 32 V Output current: 5 A Switching frequency is 1.14 MHz The product's 2.9 V is 5.1 V.

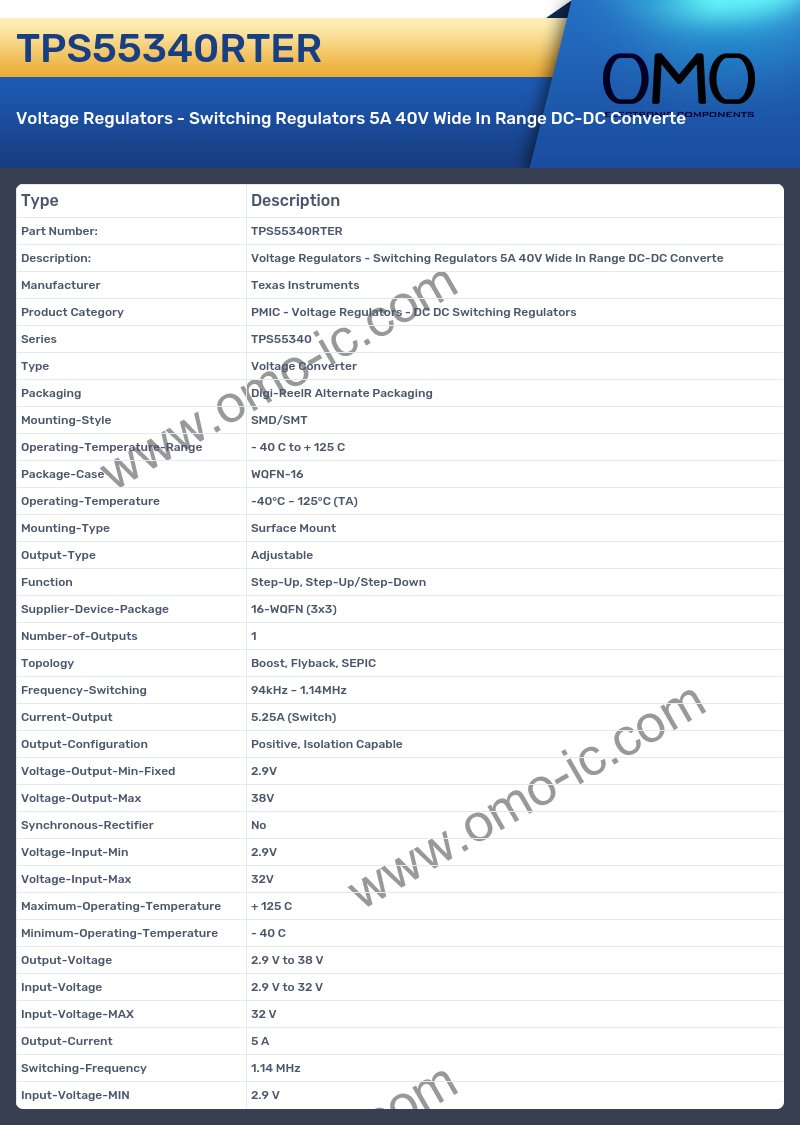

TPS55340RTER Image

TPS55340RTER Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS55340
• Type Voltage Converter
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case WQFN-16
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-WQFN (3x3)
• Number-of-Outputs 1
• Topology Boost, Flyback, SEPIC
• Frequency-Switching 94kHz ~ 1.14MHz
• Current-Output 5.25A (Switch)
• Output-Configuration Positive, Isolation Capable
• Voltage-Output-Min-Fixed 2.9V
• Voltage-Output-Max 38V
• Synchronous-Rectifier No
• Voltage-Input-Min 2.9V
• Voltage-Input-Max 32V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.9 V to 38 V
• Input-Voltage 2.9 V to 32 V
• Input-Voltage-MAX 32 V
• Output-Current 5 A
• Switching-Frequency 1.14 MHz
• Input-Voltage-MIN 2.9 V
