TPS60250RTET

TPS60250RTET Overview

Product belongs to the TPS60250 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WQFN-16 This product's 750kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Current Mode Versatile Backlight applications for maximum usability Supplier device package: 16-WQFN (3x3) Number-of-Outputs: 7 Current-Output-Channel is 230mA This product has Yes. Topology: Switched Capacitor (Charge Pump) feedback The maximum voltage supply is 6V. The minimum 3V required for voltage supply. Output voltage: 6.5V Dimming control is done through I2C communication. Power-off control: 0.821 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 750 kHz. Input Voltage Range: 3 V to 6 V Output current: 230 mA Maximum supply current: 6.7 mA The TPS60250EVM-185. High-Level-Output-Current of 0.23 A

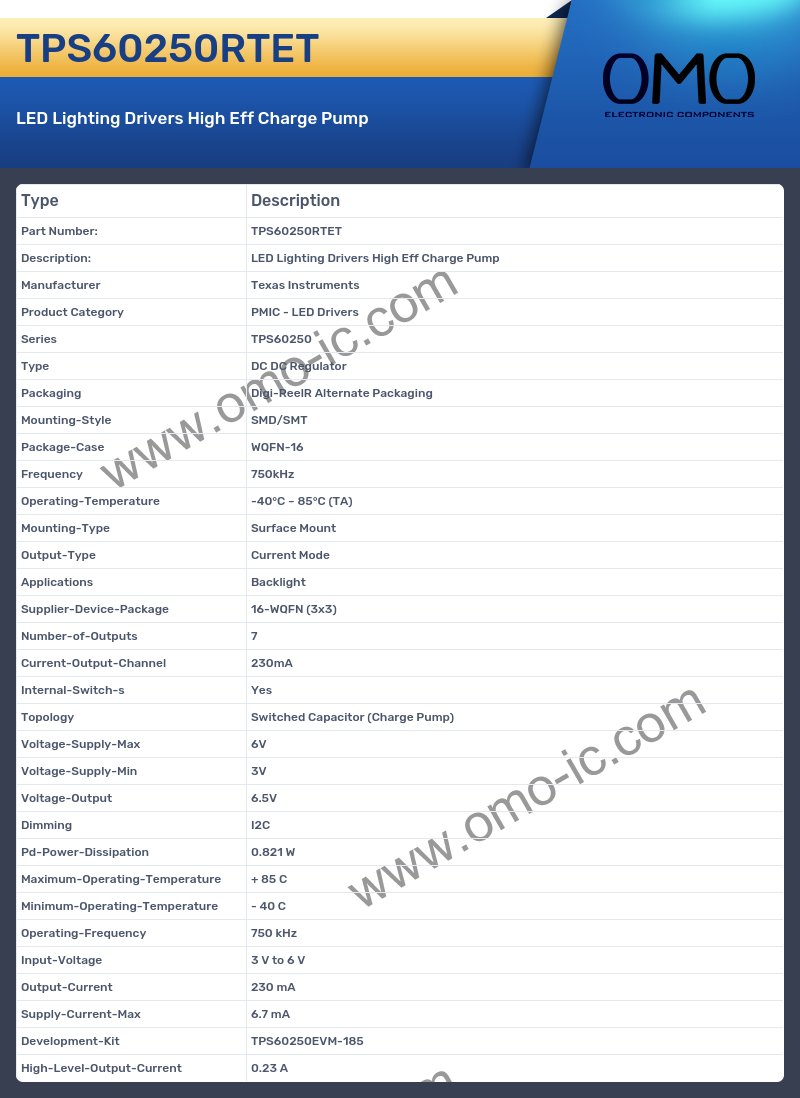

TPS60250RTET Image

TPS60250RTET Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TPS60250
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WQFN-16
• Frequency 750kHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Current Mode
• Applications Backlight
• Supplier-Device-Package 16-WQFN (3x3)
• Number-of-Outputs 7
• Current-Output-Channel 230mA
• Internal-Switch-s Yes
• Topology Switched Capacitor (Charge Pump)
• Voltage-Supply-Max 6V
• Voltage-Supply-Min 3V
• Voltage-Output 6.5V
• Dimming I2C
• Pd-Power-Dissipation 0.821 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 750 kHz
• Input-Voltage 3 V to 6 V
• Output-Current 230 mA
• Supply-Current-Max 6.7 mA
• Development-Kit TPS60250EVM-185
• High-Level-Output-Current 0.23 A
