TPS62120DCNT

TPS62120DCNT Overview

Product belongs to the TPS62120 series. Type: Switching Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOT-23-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: SOT-23-8 Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at Up to 800kHz for optimal performance. The Positive. Minimum fixed output voltage is 1.2V . The value of Yes is included as a product attribute. The minimum input voltage is 2V. The 15V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.2 V to 5.5 V Input Voltage Range: 2 V to 15 V Maximum Input Voltage: 15 V Output current: 75 mA Switching frequency is 800 kHz The product's 2 V is 5.1 V.

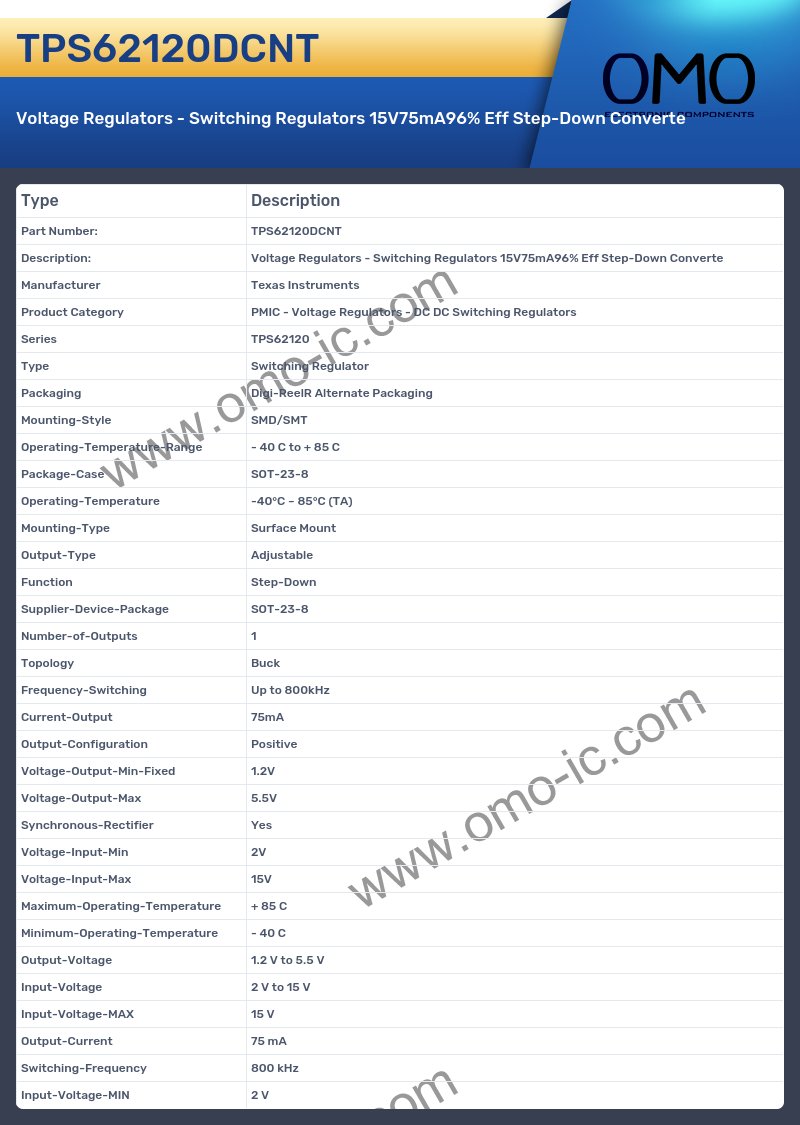

TPS62120DCNT Image

TPS62120DCNT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS62120
• Type Switching Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOT-23-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package SOT-23-8
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching Up to 800kHz
• Current-Output 75mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.2V
• Voltage-Output-Max 5.5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 2V
• Voltage-Input-Max 15V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V to 5.5 V
• Input-Voltage 2 V to 15 V
• Input-Voltage-MAX 15 V
• Output-Current 75 mA
• Switching-Frequency 800 kHz
• Input-Voltage-MIN 2 V
